T1 - Sandwich Kit - Midnight Color
T1 - Sandwich Kit - Midnight Color
T1 - Sandwich Kit - Midnight Color

T1 - Sandwich Kit - Midnight Color

  • Global Shipping
Kit
Side Panel
Ships in
Regular price$215.00 USD
/
Shipping calculated at checkout.

This color is limited and will NOT restock regularly.

If an item is unavailable, sign up for the Restock Notification below, and we will prioritize restocking it!
Restock Notification Done!
Error, please try again.
Notify Me When Available

Introducing
T1 Version 2.5



Better Surface Finish Easier Flatpack Assembly Easier Flatpack Assembly Easier Flatpack Assembly Easier Flatpack Assembly Better Structural Rigidity Better Structural Rigidity Better Structural Rigidity Better PCIe 4.0 Riser


Better Surface Finish

The Front, Top, and Bottom Panels have been upgraded to a finer sandblasting and smoother surface finish, matching flagship products from the smartphone industry. This superior finish is a result of our newly upgraded supply chain, adding to a more premium aesthetic and tactile experience.

The GPU, Power Supply, and Fan Brackets surface is more scratch-resistant.

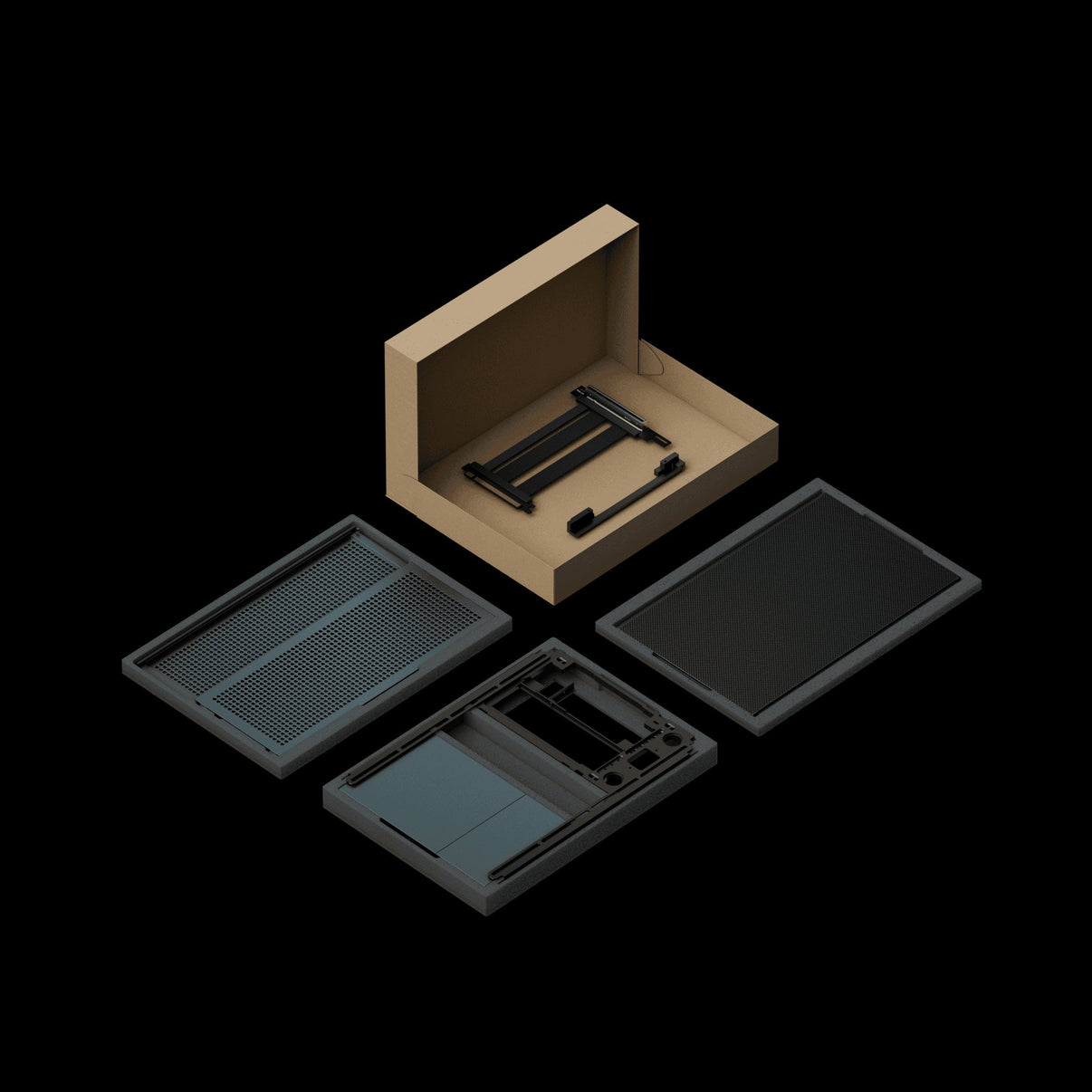

Easier Flatpack Assembly

The types of screws needed for assembly are minimized. Assembly screws are now visually different from each other, making it easier to identify for assembly.

The Power Button is now assembled into the Front Panel for faster enclosure assembly. Rear Panel, Motherboard IO, and GPU Brackets are also prebuilt for easier enclosure assembly.

Better Structural Rigidity

Increased thickness for the Top and Side Struts improved rigidity for the enclosure, power supply, and motherboard installation. Note: The Side Strut's increased thickness is incompatible with older versions.

Better PCIe Riser Cable

The PCIe Riser Cable has been upgraded to a design meant for servers, offering enhanced reliability and installation flexibility. Additionally, the color has been updated to black.

Aluminum Mesh Side Panels Is Standard

The Mesh Side Panel material changed from steel to aluminum. Aluminum is a gentler material that helps prevent damage to the aluminum Front and Rear Panels during regular use.

Overview FormD and the T1 project originated as an R&D venture in manufacturing utilizing NCASE resources. The T1 enclosure is now integrated into the NCASE portfolio.

The T1 Sandwich Kit is a redesigned and refined version of the FormD T1 by NCASE.

The sandwich configuration enhances graphics card compatibility while maintaining a compact enclosure volume.

Unlocking the full potential of this configuration makes it ideal for tinkers and power users interested in pushing the limits.
Materials 1.5-15mm Aluminum, CNC Machined and Anodized
1-2mm Steel, Powder Coated
Dimension (cm) 13.5 x 22 x 33.5
Foot Print (cm^2) 452.25
Volume (L) 9.95
Weight (KG) 2.8
Shipment Weight (KG) 3.0
Shipment Dimensions (cm) 8 x 30 x 40
Motherboard Mini-ITX, Deep-ITX
CPU Cooler Support 48mm max height with 3.25-Slot GPU
53mm max height with 3-Slot GPU
58mm max height with 2.75-Slot GPU
63mm max height with 2.5-Slot GPU
68mm max height with 2.25-Slot GPU
73mm max height with 2-Slot GPU
78mm max height with 1.75-Slot GPU
83mm max height with 1.5-Slot GPU
88mm max height with 1.25-Slot GPU
PCIe Riser PCIe X16 4.0 Cable
Graphics Card Support

GPUs no more than 140 x 325mm, 3.25-Slot thick

Note: Graphics Card depends on CPU Cooler height. See CPU Cooler Support section for more information

Fan Support Top or Bottom: 1 or 2 x 120mm based on components
Side: 2 x 120mm or 2 x 140mm based on components (requires a separate kit)
Liquid Cooling Support 1 x 120mm Radiator
1 x 240mm Radiator
2 x 240mm Radiator (requires a separate kit)
1 x 280mm and 1 x 240mm Radiator (requires a separate kit)

Note: Dual radiator setups require a single slot GPU to fit. Due to the GPU limitation and build complexity, it is not recommended for most people.
Power Supply SFX Power Supply
SFX-L Power Supply (not recommended with AIO or open-loop water cooling setup)
Front I/O Power Button
USB-C (requires a separate kit)

V2.5 Updates:

  • Better Surface Finish
    • The Front, Top, and Bottom Panels have been upgraded to a finer sandblasting and smoother surface finish, matching flagship products from the smartphone industry. This superior finish is a result of our newly upgraded supply chain, adding to a more premium aesthetic and tactile experience.
    • The GPU, Power Supply, and Fan Brackets surface is more scratch-resistant.
  • Easier Flatpack Assembly
    • The types of screws needed for assembly are minimized. Assembly screws are now visually different from each other, making it easier to identify for assembly.
    • The Power Button is now assembled into the Front Panel for faster enclosure assembly. Rear Panel, Motherboard IO, and GPU Brackets are also prebuilt for easier enclosure assembly.
  • Better Structural Rigidity
    • Increased thickness for the Top and Side Struts improved rigidity for the enclosure, power supply, and motherboard installation. Note: The Side Strut's increased thickness is incompatible with older versions.
  • Better PCIe Riser Cable
    • The PCIe Riser Cable has been upgraded to a design meant for servers, offering enhanced reliability and installation flexibility. Additionally, the color has been updated to black.
  • Aluminum Mesh Side Panels Is Standard
    • The Mesh Side Panel material changed from steel to aluminum. Aluminum is a gentler material that helps prevent damage to the aluminum Front and Rear Panels during regular use.

V2.1 Updates:

  • Front Panel
    • Only the Sandwich Kit benefits from this change. Two extra screw holes are added for V2.1 Side Fan + Radiator Bracket Brace. This feature is added for dual radiator builds where the second radiator is mounted to the GPU side.
  • Front Panel Screw Bar SW
    • This part is only included in the Sandwich Kit. The Power Supply Bracket mounting holes on this bar are now threaded. This allows the SFX Bracket to install more securely.
  • Rear Panel SW
    • This part is only included in the Sandwich Kit. The Rear Panel M19 holes are now through-holes, no longer threaded.
  • SFX Power Supply Bracket
    • Added slotted holes for more mounting options.
  • GPU Lock Brackets
    • This part is only included in the Sandwich Kit. The GPU Lock Bars from V2.0 have been replaced with GPU Lock Brackets. These brackets allow better GPU cable (DP, HDMI) clearance than the old bars.
  • PCIe Riser Bar
    • This part is only included in the Sandwich Kit. Two threaded holes are added to support more PCIe Riser Cables.

V2.0 Updates:

  • Improved GPU support up to 140 x 325mm, 3.25-Slot thick.
  • Improved 240 AIO support up to 46mm thickness for Fan and Radiator.
  • Improved Dual Radiator support.

T1 -Black Color

T1 -Gunmetal Color

T1 -Sliver Color

GPU 140×325×20(mm)
CPU Maximum Height 93mm

1.0 GPU Slot

GPU 140×325×25(mm)
CPU Maximum Height 88mm

1.25 GPU Slots

GPU 140×325×30(mm)
CPU Maximum Height 83mm

1.50 GPU Slots

GPU 140×325×35(mm)
CPU Maximum Height 78mm

1.75 GPU Slots

GPU 140×325×40(mm)
CPU Maximum Height 73mm

2.0 GPU Slots

GPU 140×325×45(mm)
CPU Maximum Height 68mm

2.25 GPU Slots

GPU 140×325×50(mm)
CPU Maximum Height 63mm

2.50 GPU Slots

GPU 140×325×55(mm)
CPU Maximum Height 58mm

2.75 GPU Slots

GPU 140×325×60(mm)
CPU Maximum Height 53mm

3.0 GPU Slots

GPU 140×325×65(mm)
CPU Maximum Height 48mm

3.25 GPU Slots
