T1 - Sandwich Kit - Black Color
T1 - Sandwich Kit - Black Color

T1 - Sandwich Kit - Black Color

Version
Side Panel
Estimated Shipping Date
Regular price$185.00 USD
/
Shipping calculated at checkout.
If an item is unavailable, sign up for the Restock Notification below, and we will prioritize restocking it!
Thanks for signing up for restock notifications!
There was an error signing up for restock notifications. Please try again.

Sign up for restock notifications

Notify Me

What Is New For T1 Version 2.5


Improved Outer Surface Finish

  • The Front, Top, and Bottom Panels are made to a higher standard from our new and upgraded supply chain. The finer, smoother surface finish gives a more premium look and feel

Improved Surface For Brackets

  • The GPU, Power Supply, and Fan Brackets surface is more scratch-resistant

Improved Structural Rigidity

  • Increased thickness for the Top and Side Struts improved rigidity for the enclosure, power supply, and motherboard installation. Note: The Side Strut's increased thickness is incompatible with older versions
  • Added screw holes to secure the Motherboard IO Bracket to improve rigidity

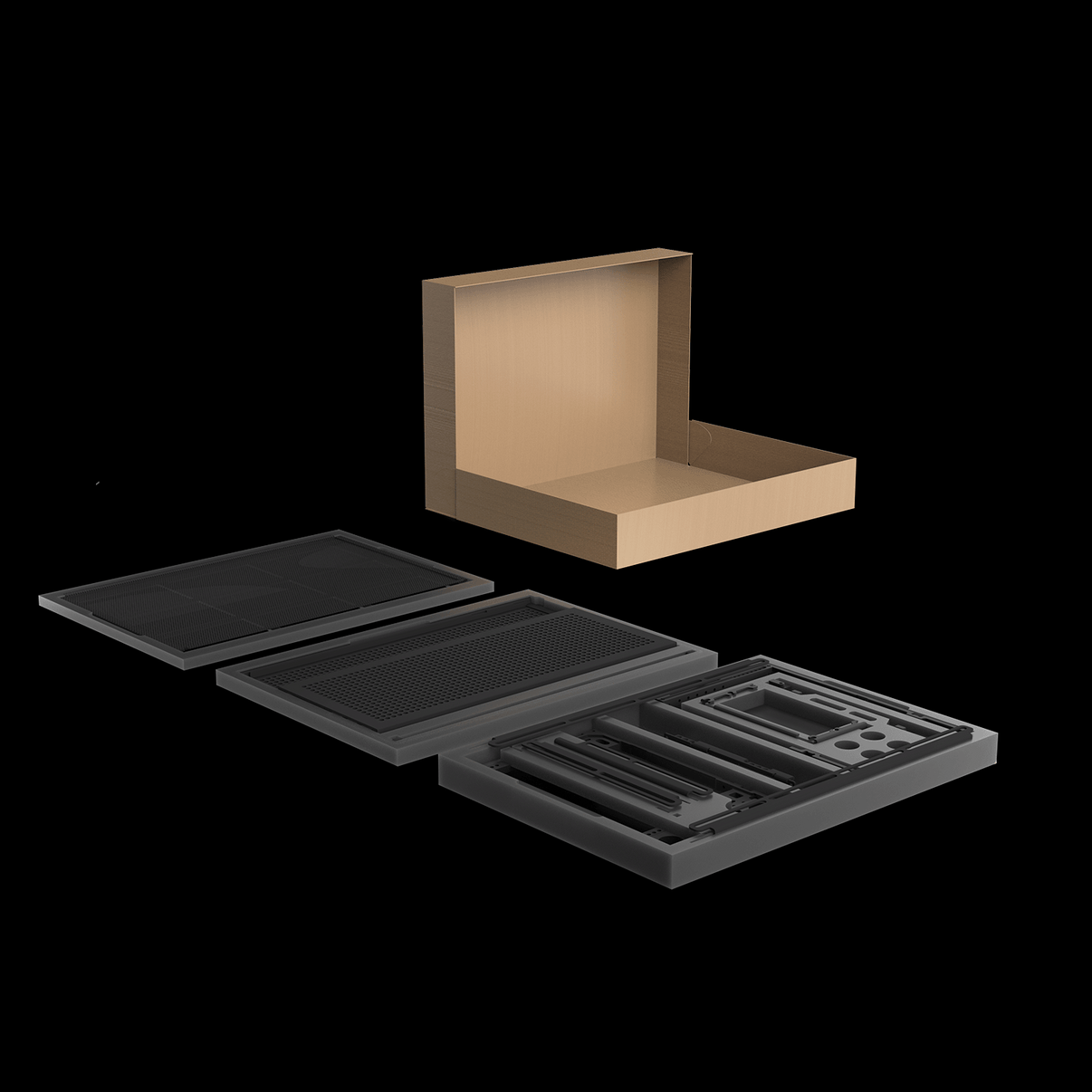

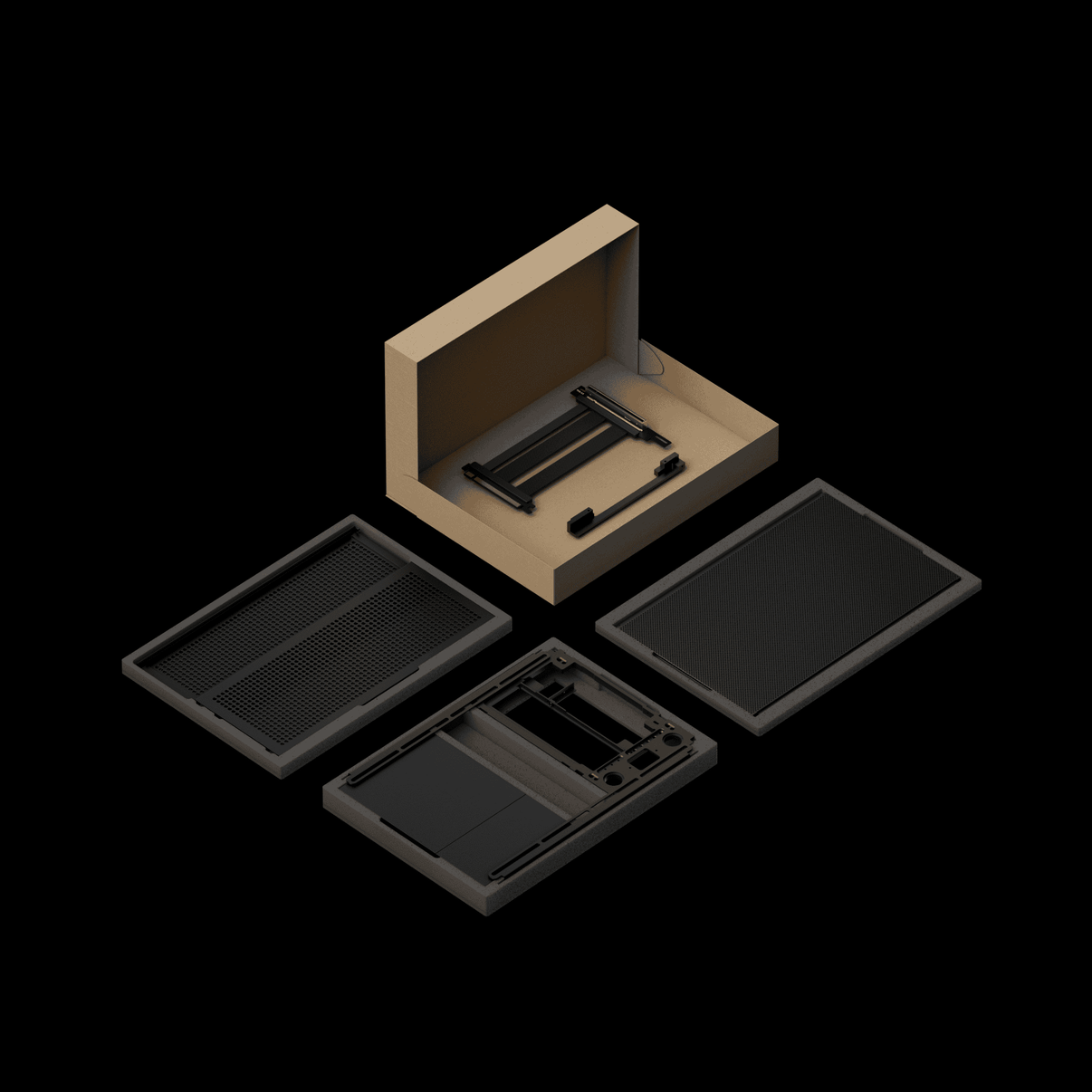

Simplified Flatpack Assembly

  • Minimized the types of screws needed for assembly
  • Assembly screws are now visually different from each other, making it easier to identify for assembly
  • The Rear Panel, Motherboard IO, and GPU Brackets are prebuilt for easier enclosure assembly
  • The Power Button kit is prebuilt for easier assembly

Aluminum Mesh Side Panels Is Standard

  • The Mesh Side Panel material changed from steel to aluminum. Aluminum is a gentler material that helps prevent damage to the aluminum Front and Rear Panels during regular use.

HIGHLY PORTABLE

Backpackable Size,
< A4 Paper In Footprint

HIGH COMPATIBILITY

Class-leading GPU And Cooler Compatibility

HIGH AIRFLOW

Class-leading Cooling Capacity, Thermal Ceiling

PREMIUM MATERIALS

CNC Machined Aluminium

PREMIUM QUALITY

Anodizing, Electrophoresis

MINIMALIST DESIGN

Harmonized Form And Function

Overview FormD and the T1 project originated as an R&D venture in manufacturing utilizing NCASE resources. The T1 enclosure is now integrated into the NCASE portfolio.

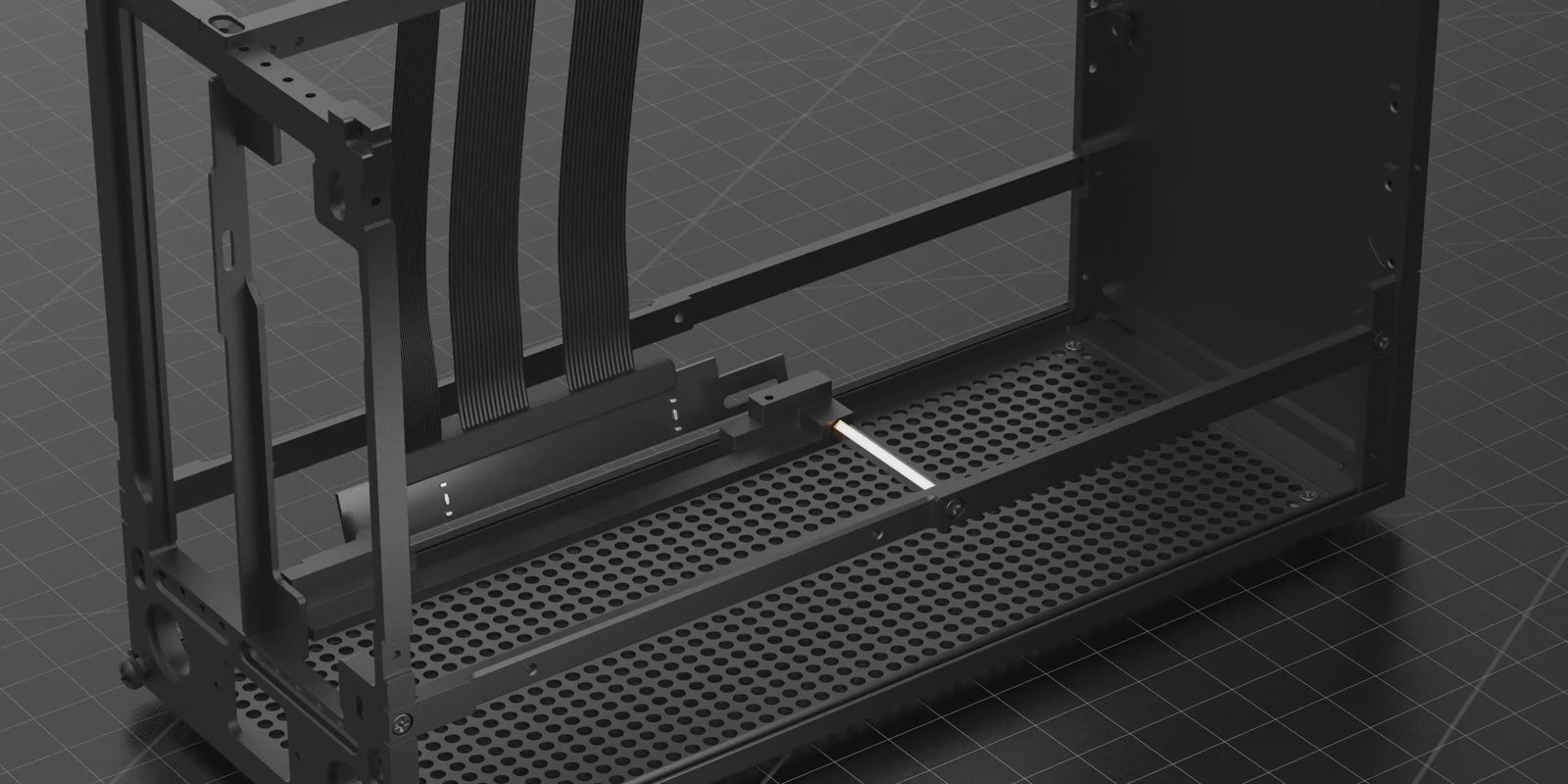

The T1 Sandwich Kit is a redesigned and refined version of the FormD T1 by NCASE.

The sandwich configuration enhances graphics card compatibility while maintaining a compact enclosure volume.

Unlocking the full potential of this configuration makes it ideal for tinkers and power users interested in pushing the limits.
Materials 1.5-15mm Aluminum, CNC Machined and Anodized
1-2mm Steel, Powder Coated
Dimension (cm) 13.5 x 22 x 33.5
Foot Print (cm^2) 452.25
Volume (L) 9.95
Weight (KG) 2.8
Shipment Weight (KG) 3.0
Shipment Dimensions (cm) 8 x 30 x 40
Motherboard Mini-ITX, Deep-ITX
CPU Cooler Support 48mm max height with 3.25-Slot GPU
53mm max height with 3-Slot GPU
58mm max height with 2.75-Slot GPU
63mm max height with 2.5-Slot GPU
68mm max height with 2.25-Slot GPU
73mm max height with 2-Slot GPU
78mm max height with 1.75-Slot GPU
83mm max height with 1.5-Slot GPU
88mm max height with 1.25-Slot GPU
PCIe Riser PCIe X16 4.0 Cable
Graphics Card Support

GPUs no more than 140 x 325mm, 3.25-Slot thick

Note: Graphics Card depends on CPU Cooler height. See CPU Cooler Support section for more information

Fan Support Top or Bottom: 1 or 2 x 120mm based on components
Side: 2 x 120mm or 2 x 140mm based on components (requires a separate kit)
Liquid Cooling Support 1 x 120mm Radiator
1 x 240mm Radiator
2 x 240mm Radiator (requires a separate kit)
1 x 280mm and 1 x 240mm Radiator (requires a separate kit)

Note: Dual radiator setups require a single slot GPU to fit. Due to the GPU limitation and build complexity, it is not recommended for most people.
Power Supply SFX Power Supply
SFX-L Power Supply (not recommended with AIO or open-loop water cooling setup)
Front I/O Power Button
USB-C (requires a separate kit)

V2.5 Updates:

  • Premium Outer Surface Finish
    • The Front, Top, and Bottom Panels are made to a higher standard from our new and upgraded supply chain. The finer, smoother surface finish gives a more premium look and feel
  • A New Surface Finish For Brackets
    • The GPU, Power Supply, and Fan Brackets surface is more scratch-resistant
  • Improved Structural Rigidity
    • Increased thickness for the Top and Side Struts improved rigidity for the enclosure, power supply, and motherboard installation. Note: The Side Strut's increased thickness is incompatible with older versions
    • Added screw holes to secure the Motherboard IO Bracket to improve rigidity
  • Simplified Flatpack Assembly
    • Minimized the types of screws needed for assembly
    • Assembly screws are now visually different from each other, making it easier to identify for assembly
    • The Rear Panel, Motherboard IO, and GPU Brackets are prebuilt for easier enclosure assembly
    • The Power Button kit is prebuilt for easier assembly
  • Aluminum Mesh Side Panels Is Standard
    • The Mesh Side Panel material changed from steel to aluminum. Aluminum is a gentler material that helps prevent damage to the aluminum Front and Rear Panels during regular use.

V2.1 Updates:

  • Front Panel
    • Only the Sandwich Kit benefits from this change. Two extra screw holes are added for V2.1 Side Fan + Radiator Bracket Brace. This feature is added for dual radiator builds where the second radiator is mounted to the GPU side
  • Front Panel Screw Bar SW
    • This part is only included in the Sandwich Kit. The Power Supply Bracket mounting holes on this bar are now threaded. This allows the SFX Bracket to install more securely
  • Rear Panel SW
    • This part is only included in the Sandwich Kit. The Rear Panel M19 holes are now through-holes, no longer threaded
  • SFX Power Supply Bracket
    • Added slotted holes for more mounting options
  • GPU Lock Brackets
    • This part is only included in the Sandwich Kit. The GPU Lock Bars from V2.0 have been replaced with GPU Lock Brackets. These brackets allow better GPU cable (DP, HDMI) clearance than the old bars
  • PCIe Riser Bar
    • This part is only included in the Sandwich Kit. Two threaded holes are added to support more PCIe Riser Cables.

V2.0 Updates:

  • Improved GPU support up to 140 x 325mm, 3.25-Slot thick
  • Improved 240 AIO support up to 46mm thickness for Fan and Radiator
  • Improved Dual Radiator support

Our team works very hard to bring our customers the best pricing and value on our products.

After exploring various manufacturing processes, to make the pricing reasonable and cost savings most impactful, some trade-offs had to be made.

  • Color - Some color variations of the parts that make up the product is standard and expected. Also, some color variation between products of the same color is normal and expected. Examples of color variation can be viewed in this album.
  • Surface - Minor surface blemishes are typical and expected, as long as they do not impede the product's functions. However, there is difference between exterior and interior standard:
    • Exterior - scratches / dents / blemishes on exterior surfaces larger than 3x2x1cm in size are covered under the warranty.
    • Interior - scratches / dents / blemishes on interior surfaces larger than 3x2x1cm in size are covered under the warranty.
Note: The interior surfaces will inevitably show wear and tear by building the product. The trade-off on the interior surface allowed for better pricing on the product.
    • Each shipping date has a limited, preset number of products available.
    • Only the product options shown at the time of order are available.
    • Items in the cart are not reserved, so they may go out of stock while checking out.
    • Please ensure your shipping address is complete and accurate. Please notify us of any corrections as soon as possible.
    • You will be charged immediately upon completing the checkout process.
    • A confirmation email will be sent to you after completing your order. Check your spam folder if you don't see it. Hotmail/MSN/Outlook users: please add ncases.com to your safe senders' list, or emails may not get through.
    • All changes to your order, including SKU, quantities, address corrections, or cancellation requests, must be submitted 72 hours before shipping. Otherwise, we cannot make any changes once your order.
    • Cancellations requested by the customer are subject to a 4% payment processing fee. Additional foreign exchange fees may apply for payments *not in US dollars.
    • Refunds are made to the original payment method and usually take 5-10 business days to process.
    • Refunded orders cannot be reversed, and if you cancel and change your mind later, you will need to place a new order.
    • All items are prepackaged for individual shipping by default, so we cannot combine shipping for multiple items unless stated otherwise.
    • The shipping times we provide are only an estimate; actual shipping times may vary and are subject to customs processing or other delays.
    • A third party provides tracking numbers to us within a few days of shipping. We will update your order with the tracking number once we have it (usually by the end of your shipping week).
    • Tracking may show "Origin Post is Preparing Shipment" or something similar for some time. This is normal, as some shipping methods do not update tracking to indicate the item has been shipped. Tracking should resume updating once the package has reached the destination country and been processed through customs.
    • Any import fees/taxes/VAT owed is the recipient's responsibility. Typically, the courier will notify you of any fees due. US customers do not have to pay any import fees.
    • A signature is required for delivery. Please be sure that someone is available to receive and sign the package. If not, please coordinate with the courier to pick it up at their office.
    • Please note that we cannot change the address or redirect shipments once they have shipped.
    • If delivery fails and the package is returned to Asia, we may ask you to pay all or part of the shipping cost to have it reshipped. If, instead, after the package is returned, we may elect to refund the amount less all or part of the original shipping cost plus the 4% payment processing fee.
