Specifications
Models

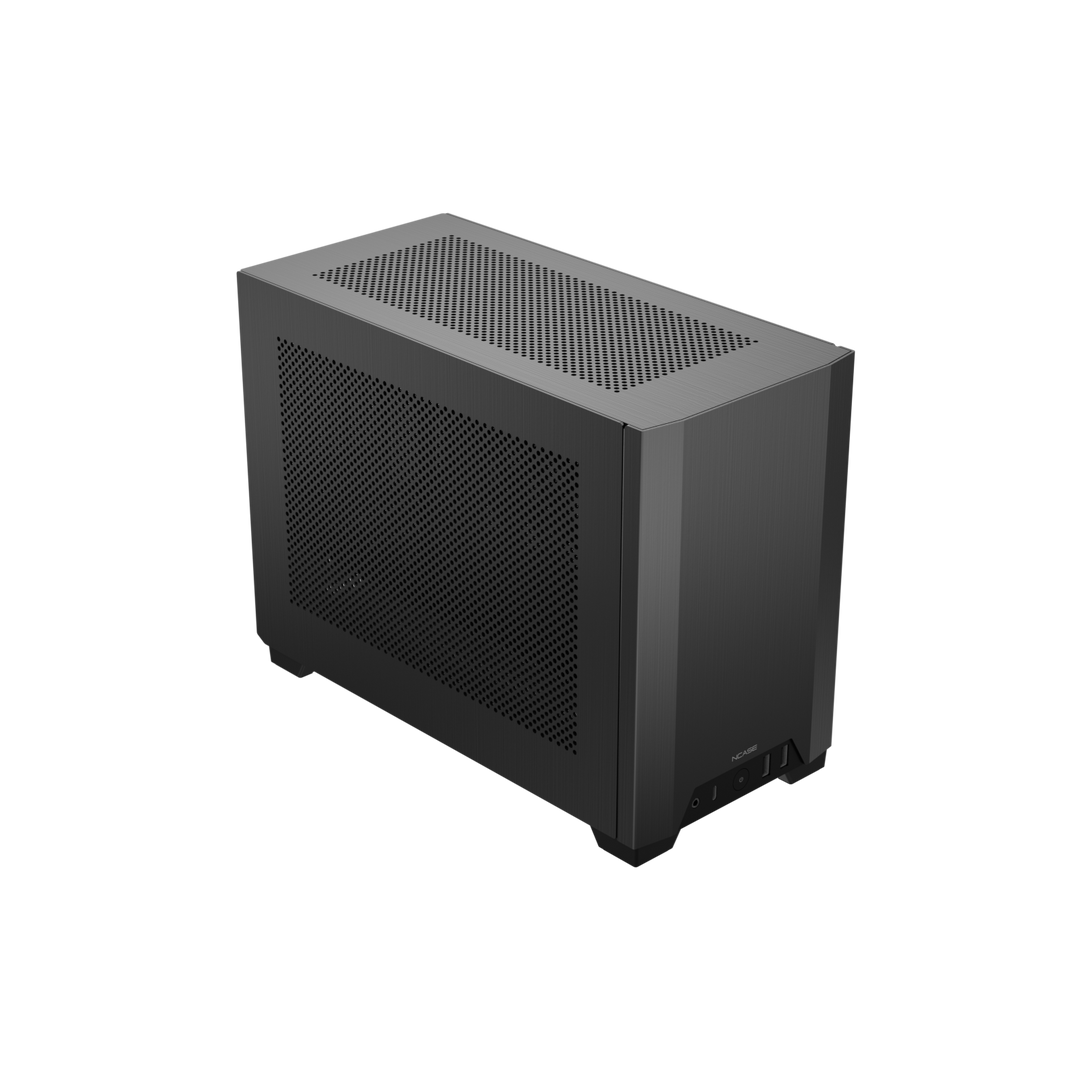

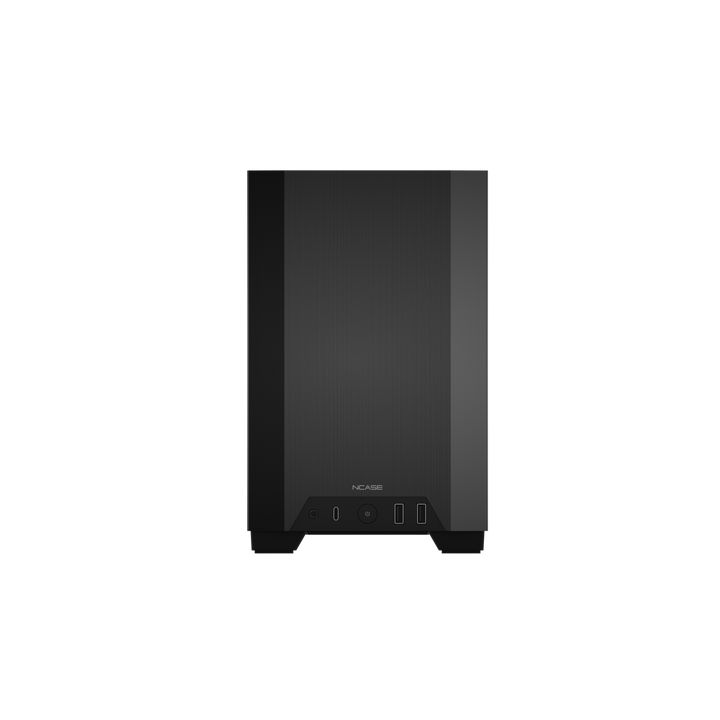

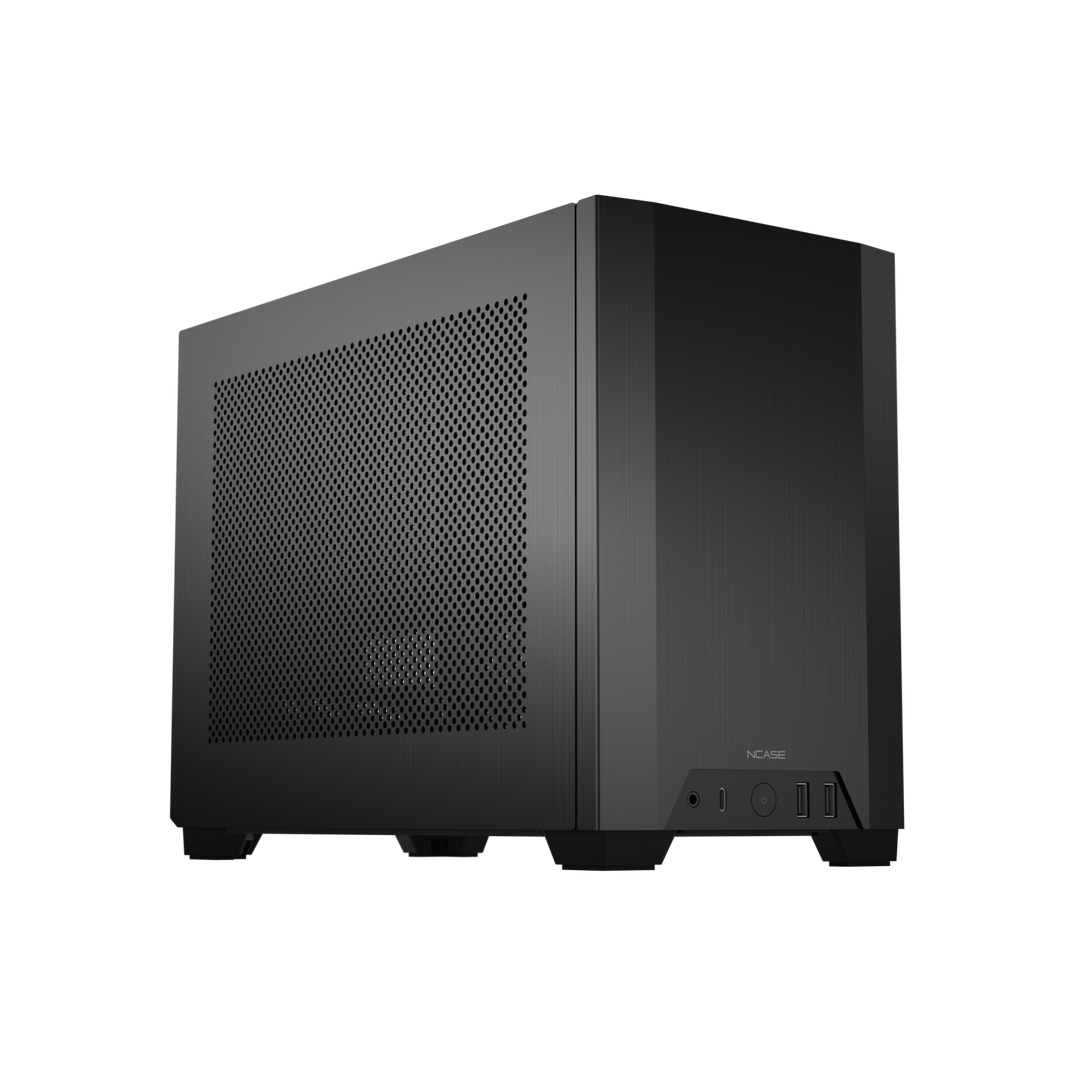

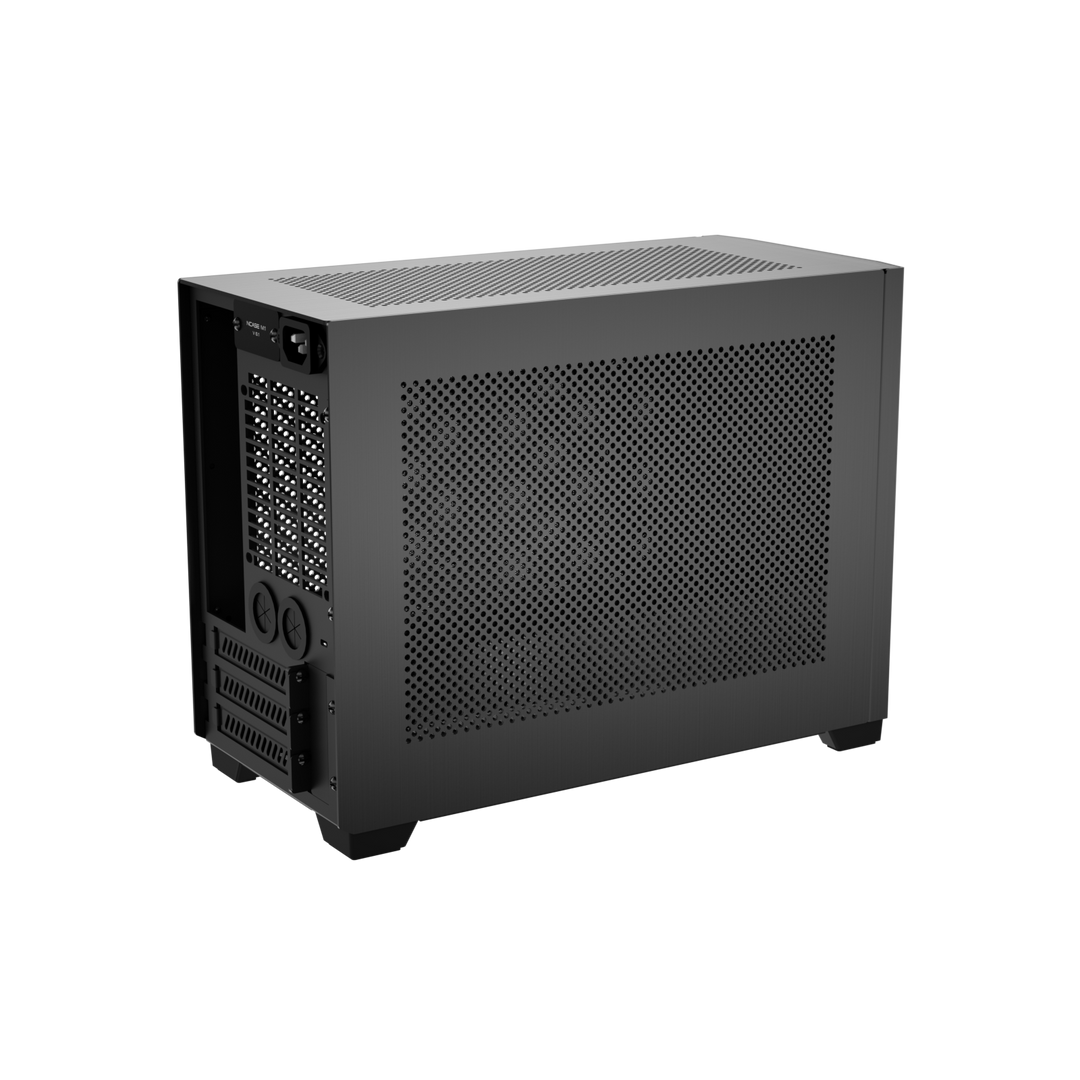

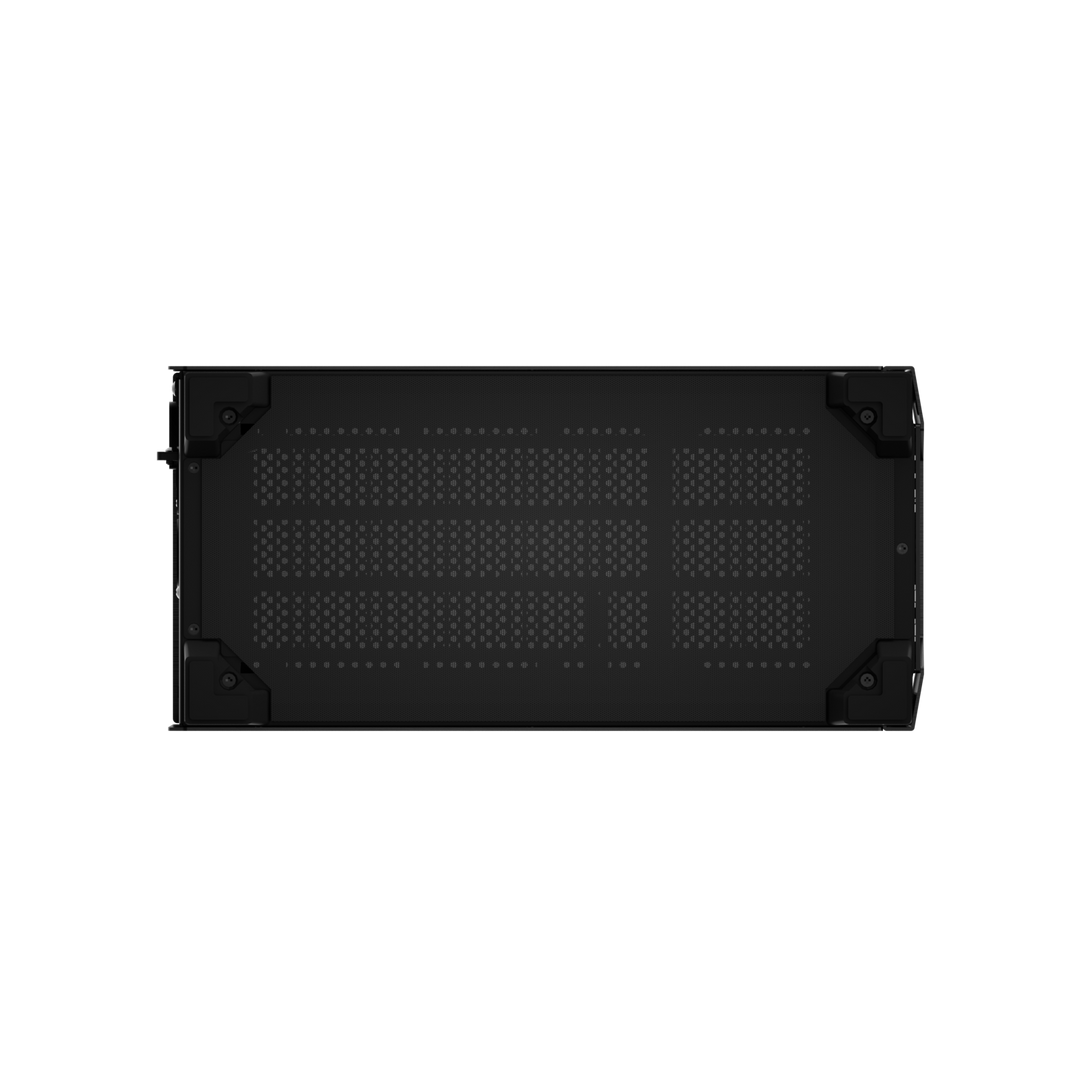

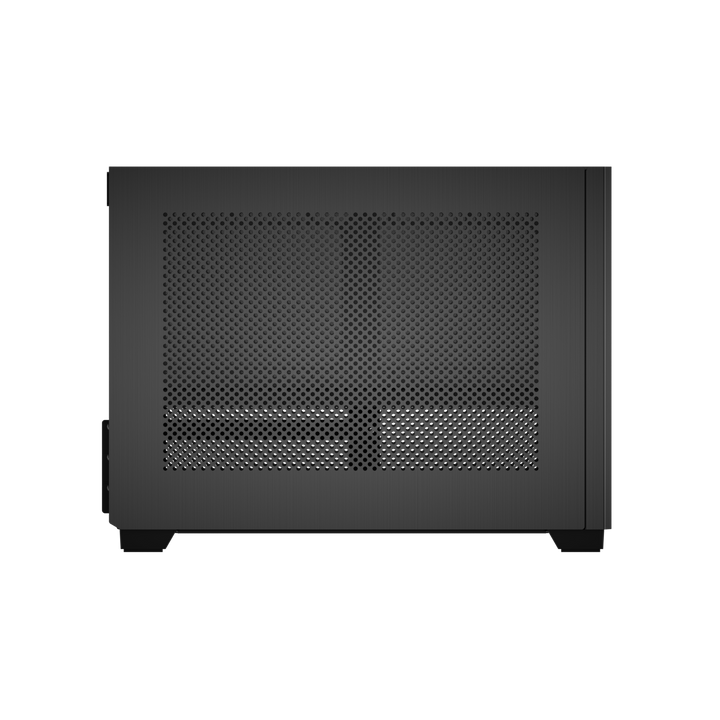

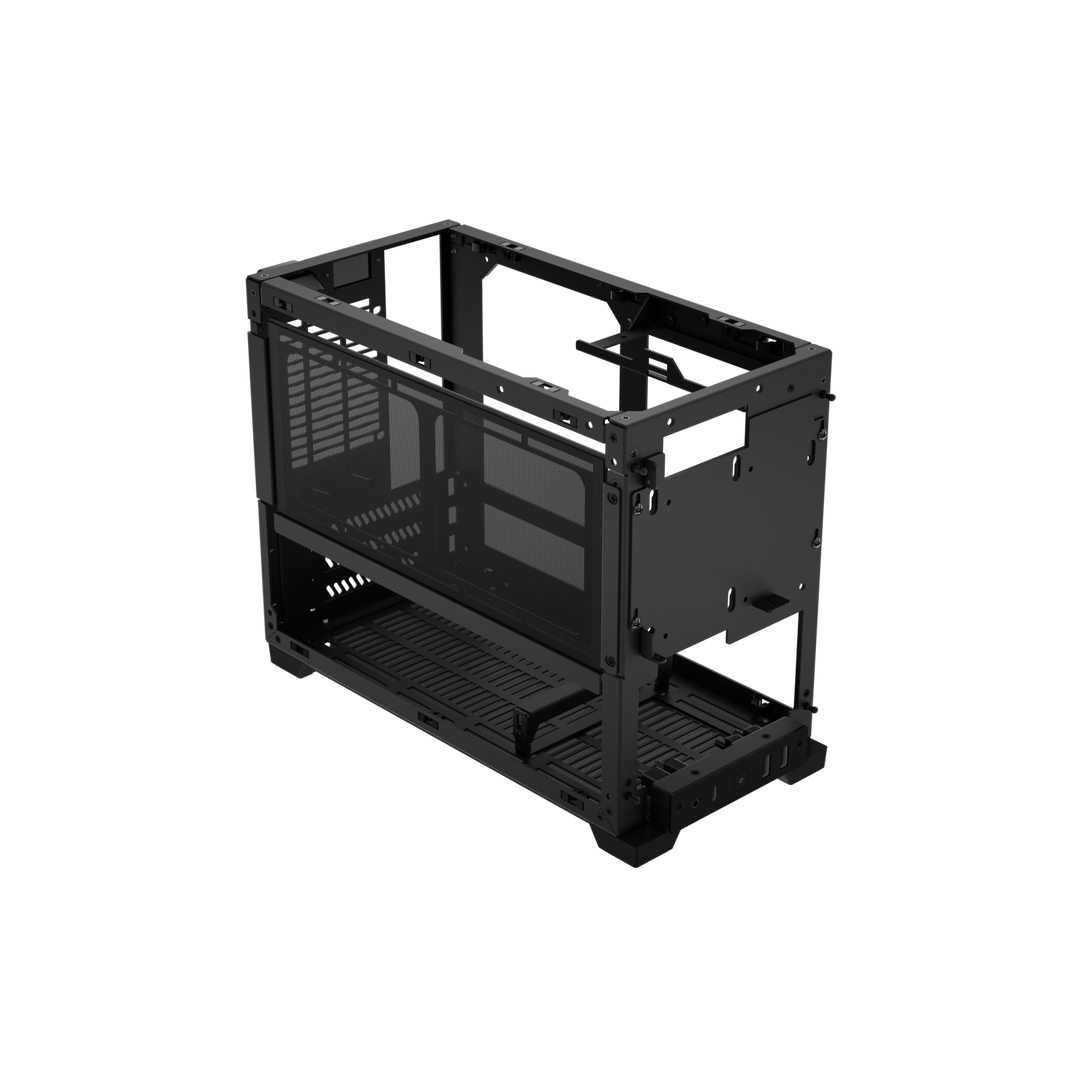

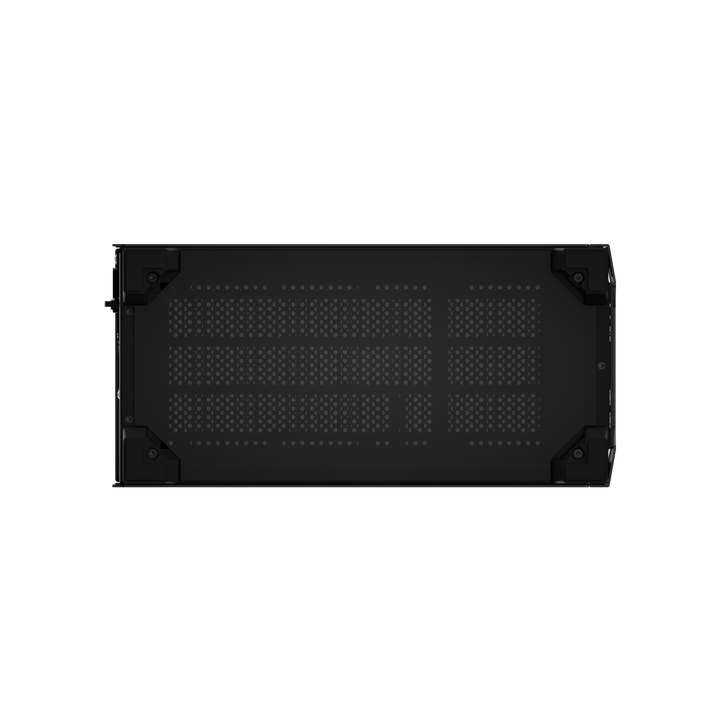

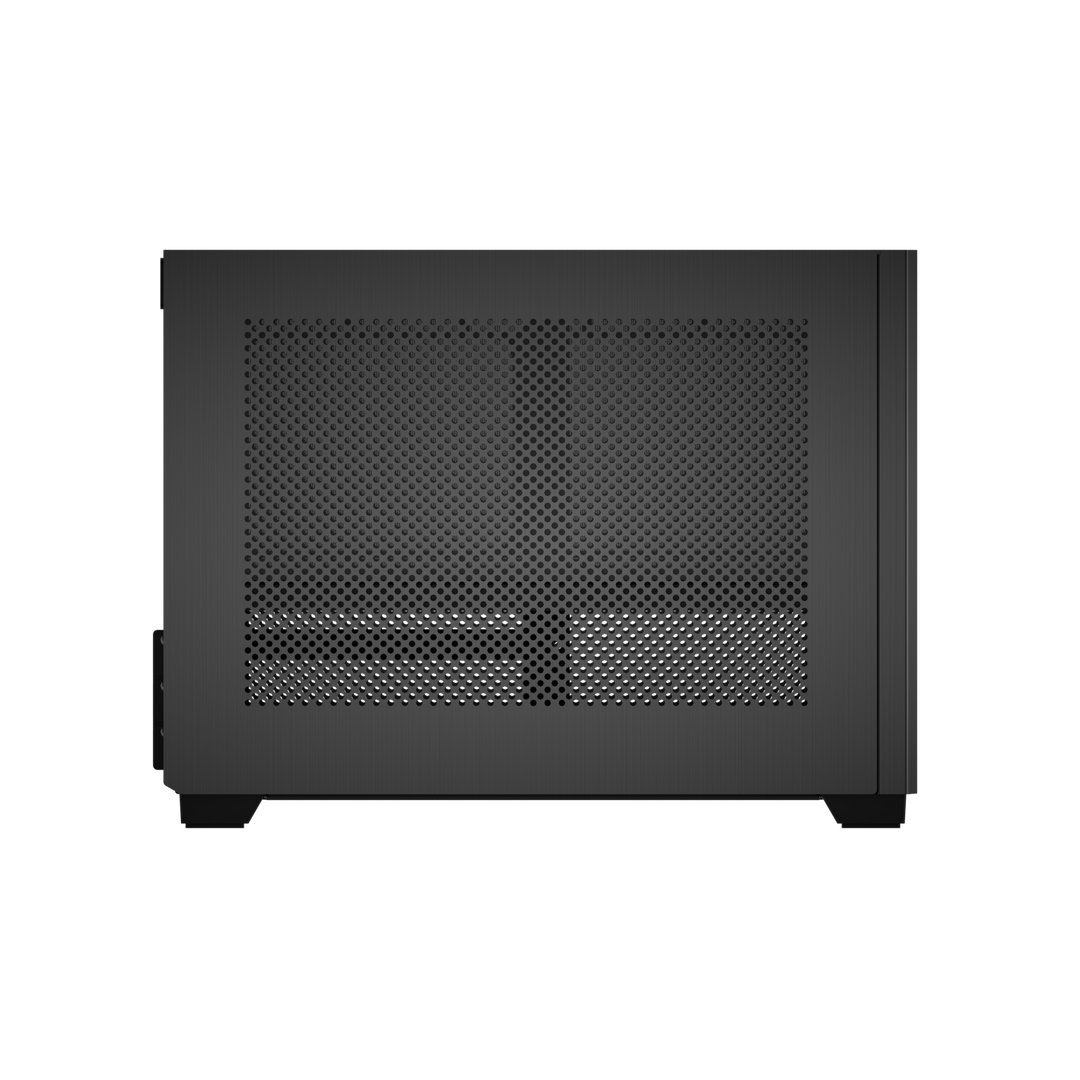

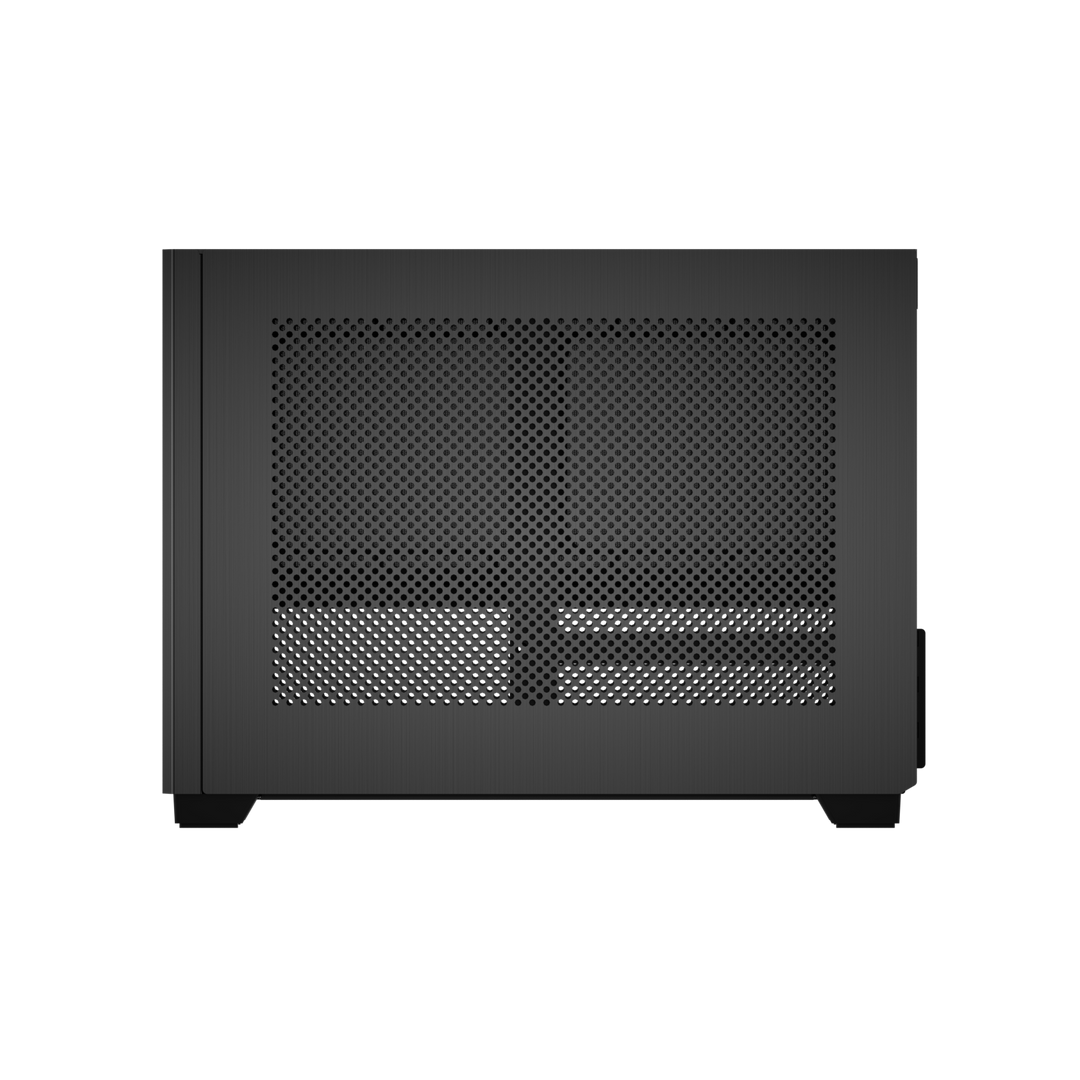

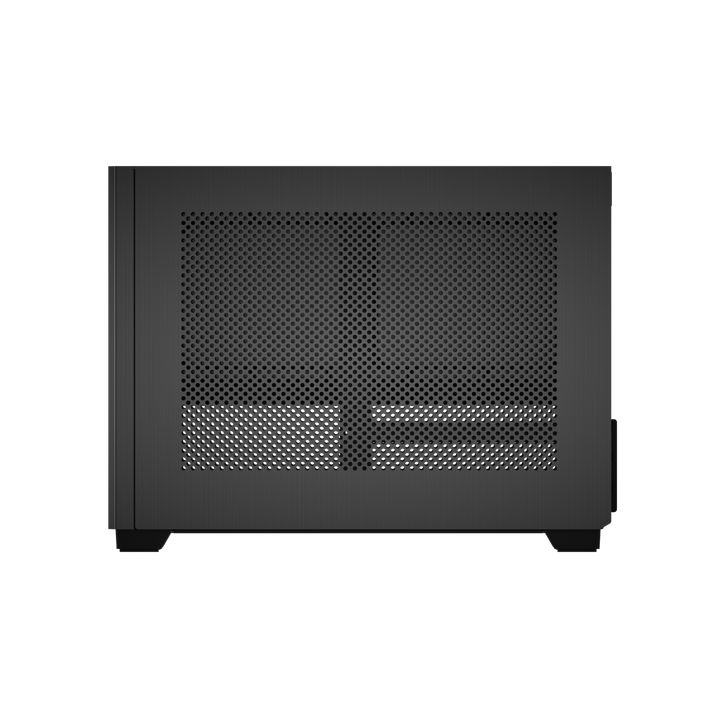

M1ENC-V61-BB-TW1: M1 Version 6.1, black exterior

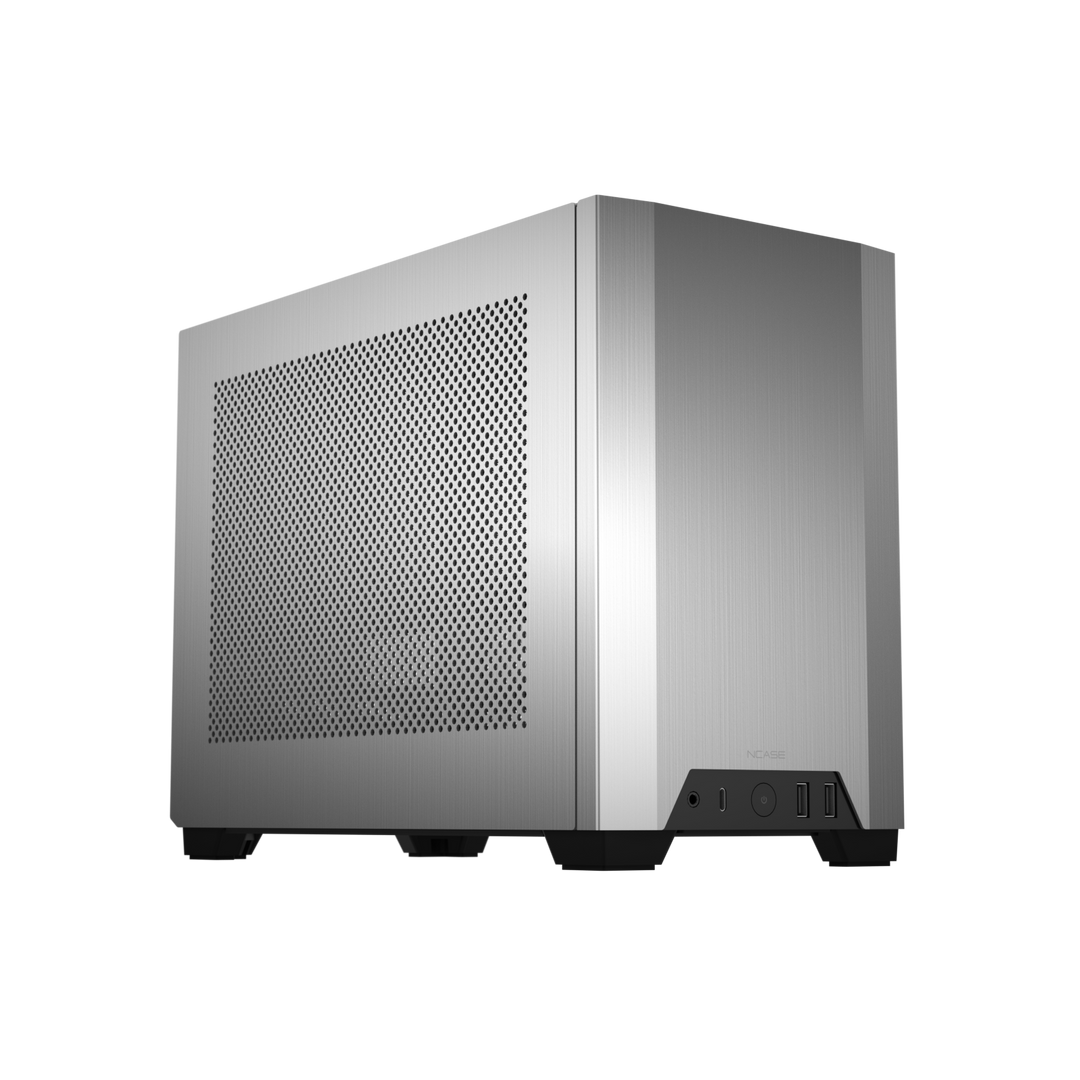

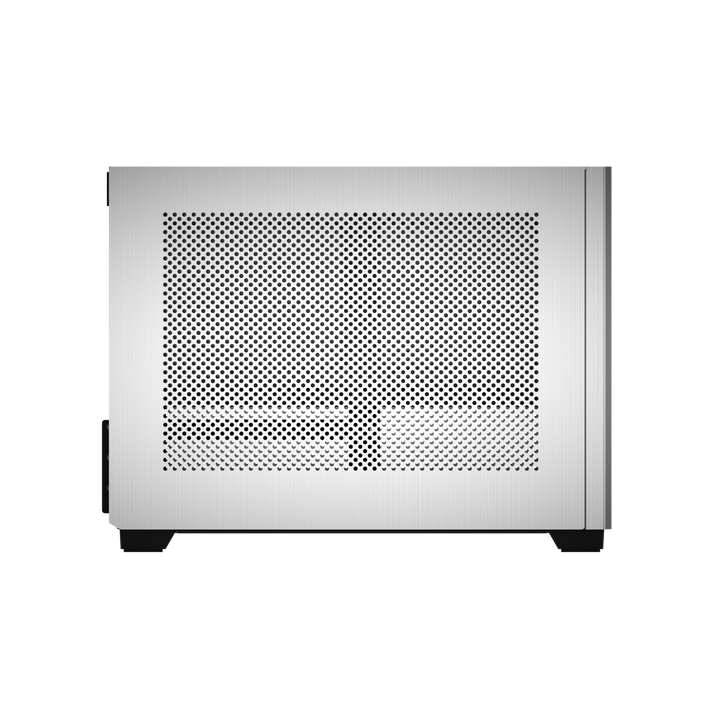

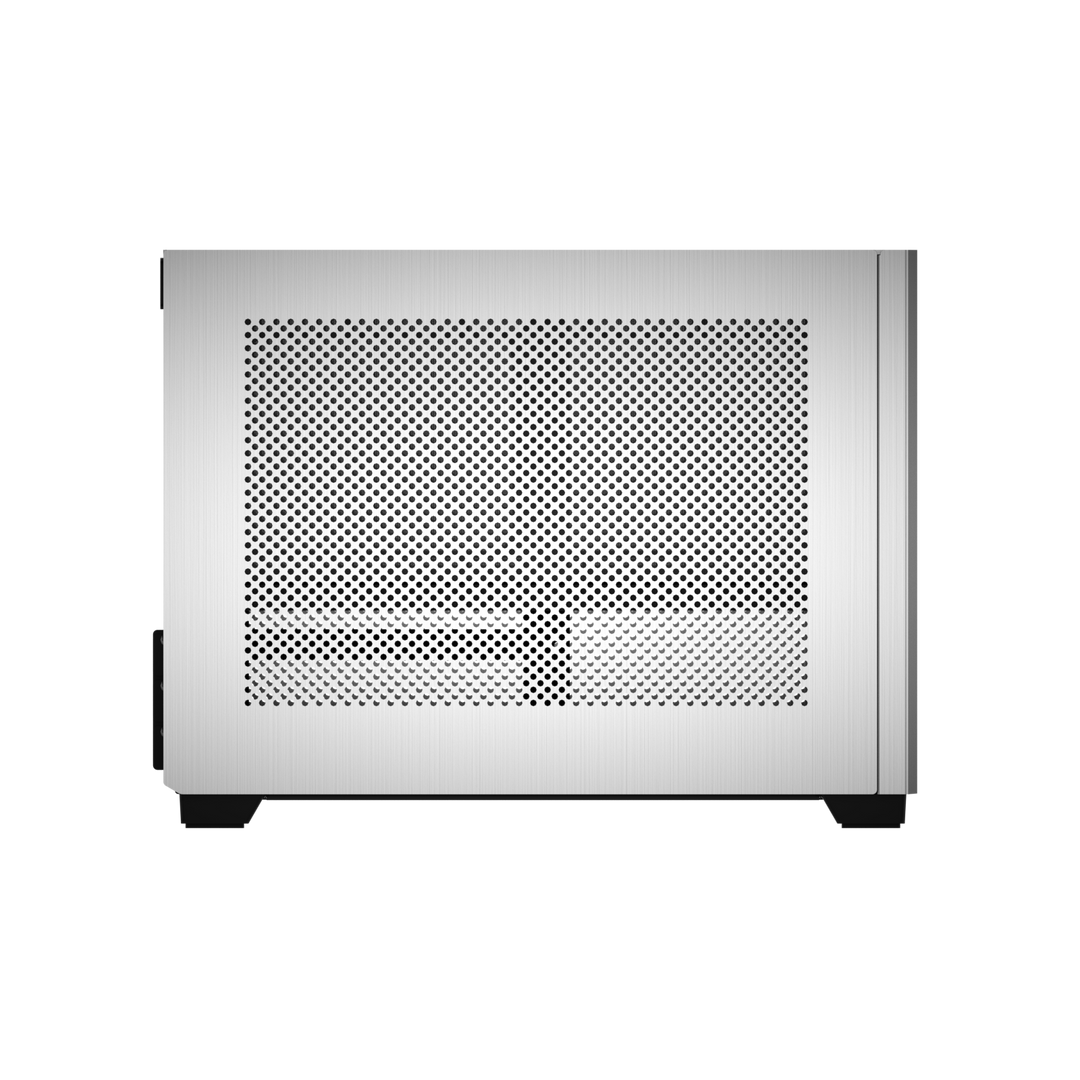

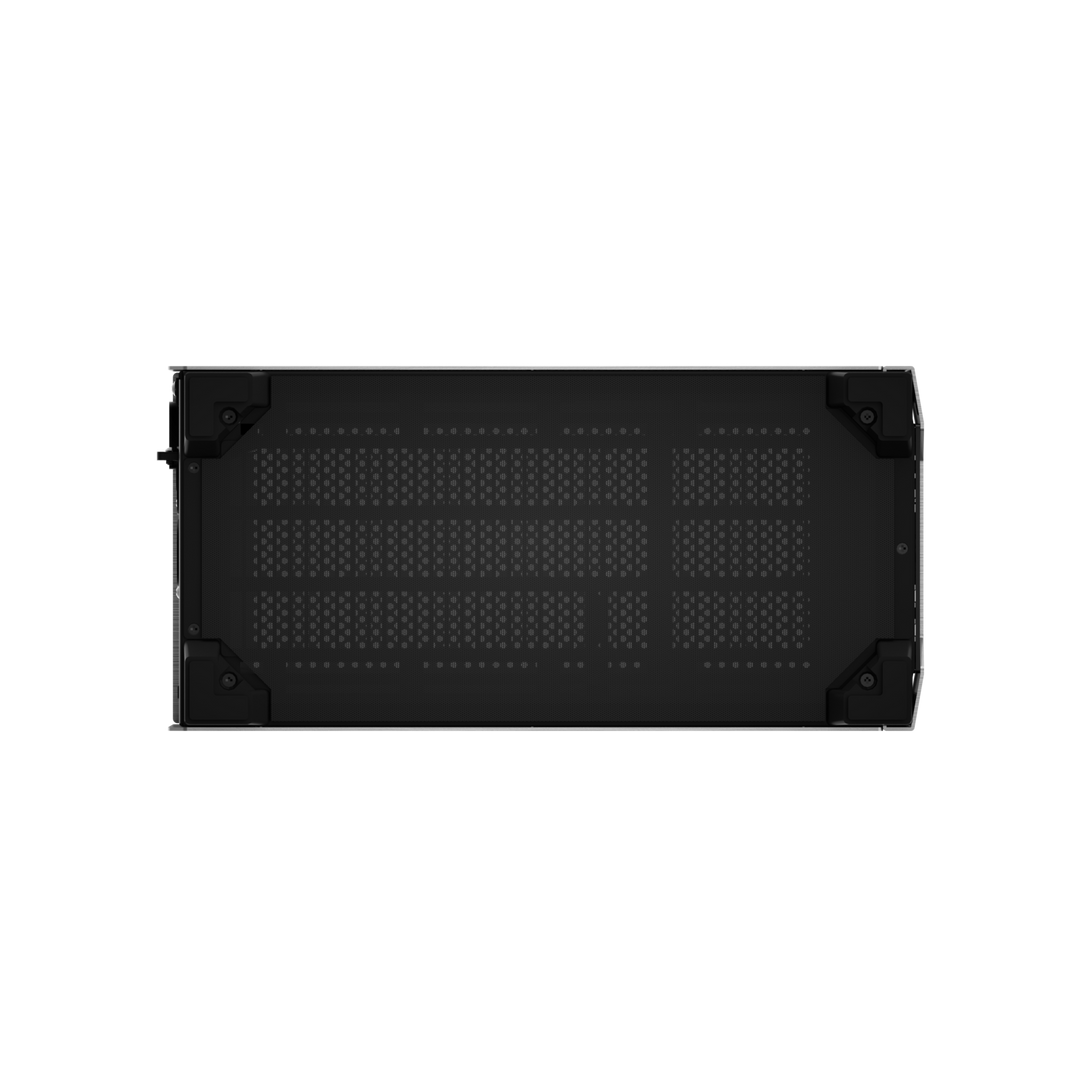

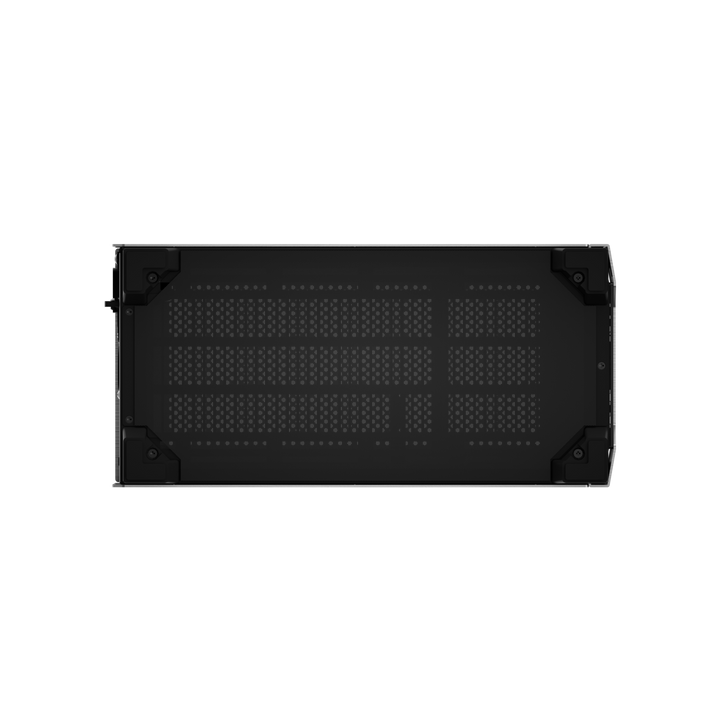

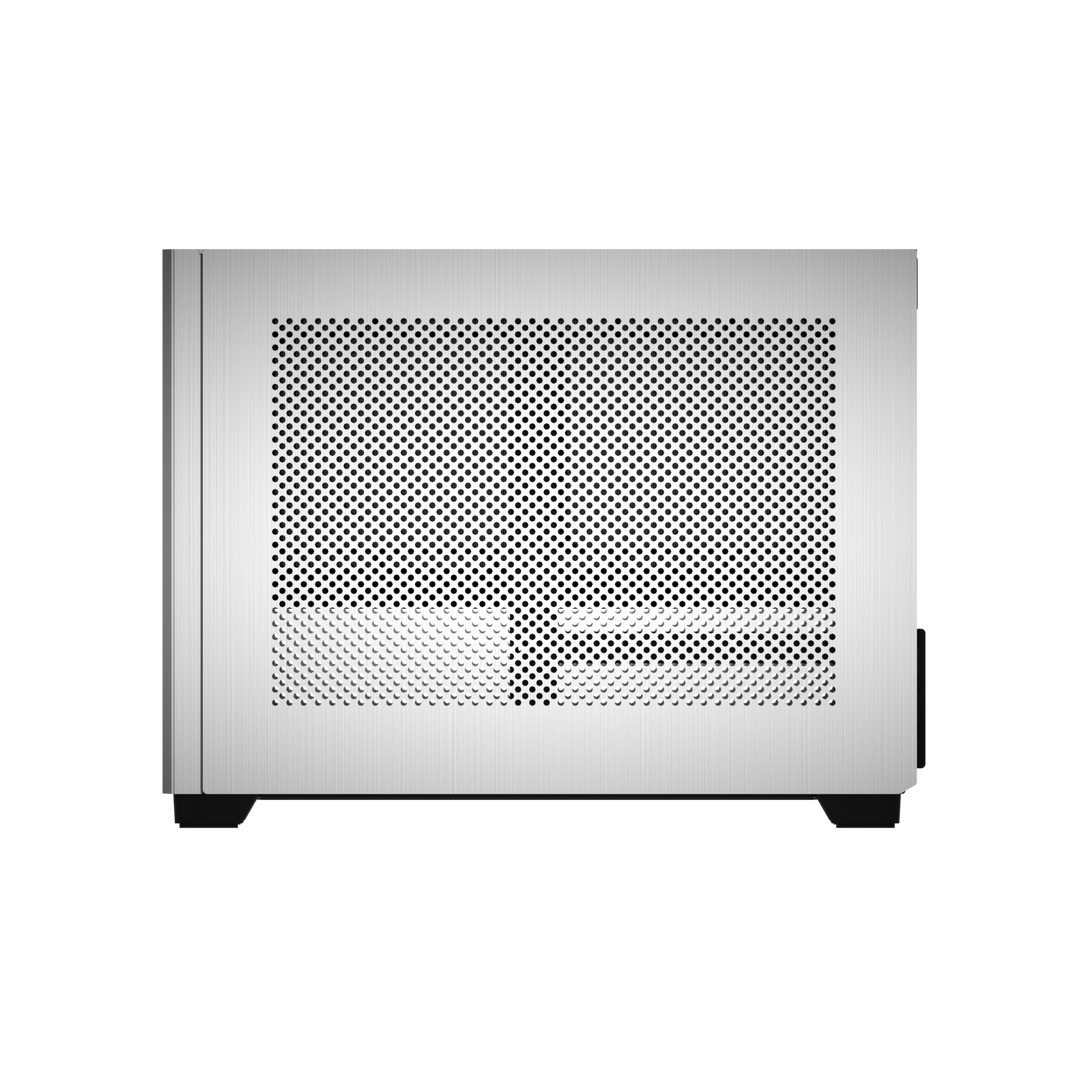

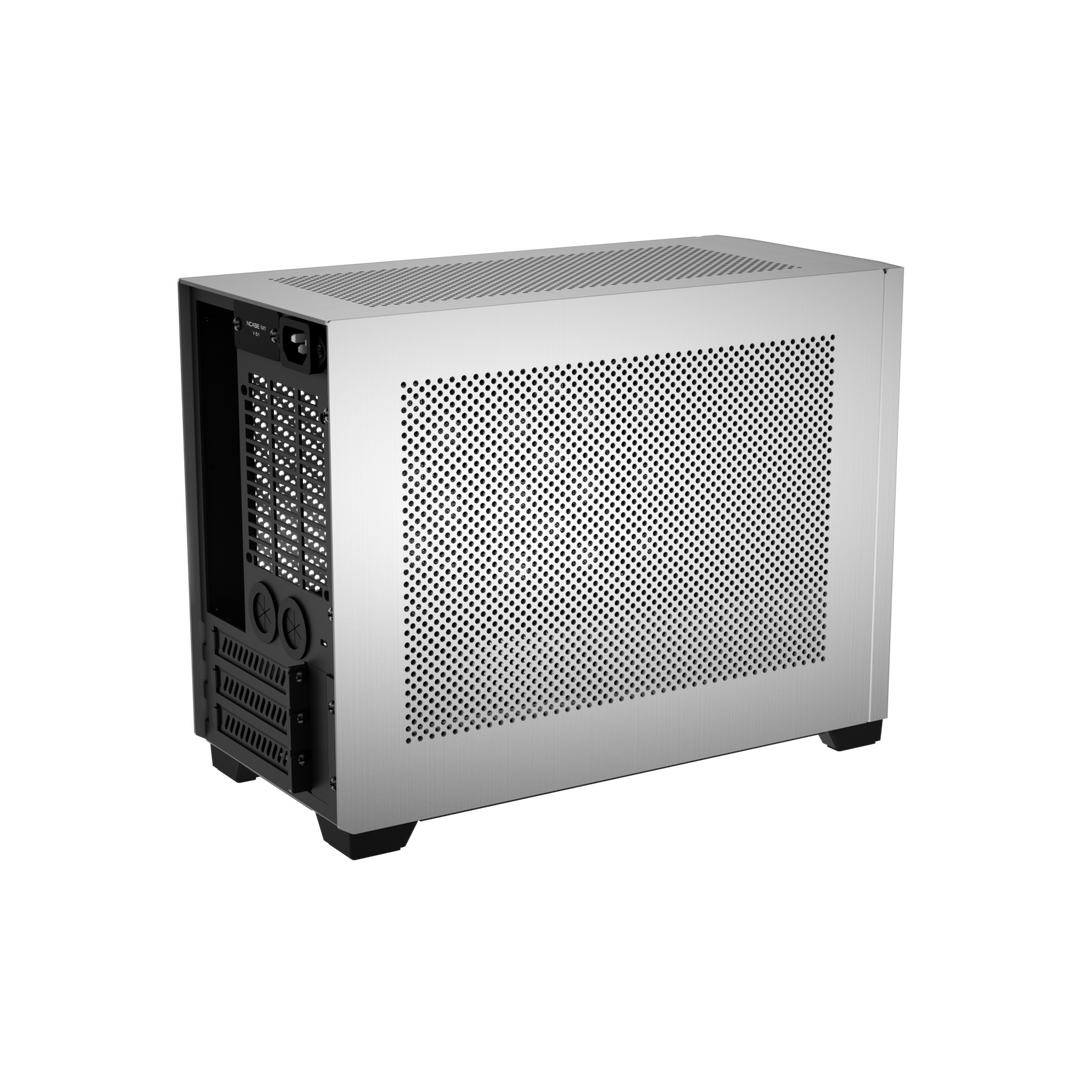

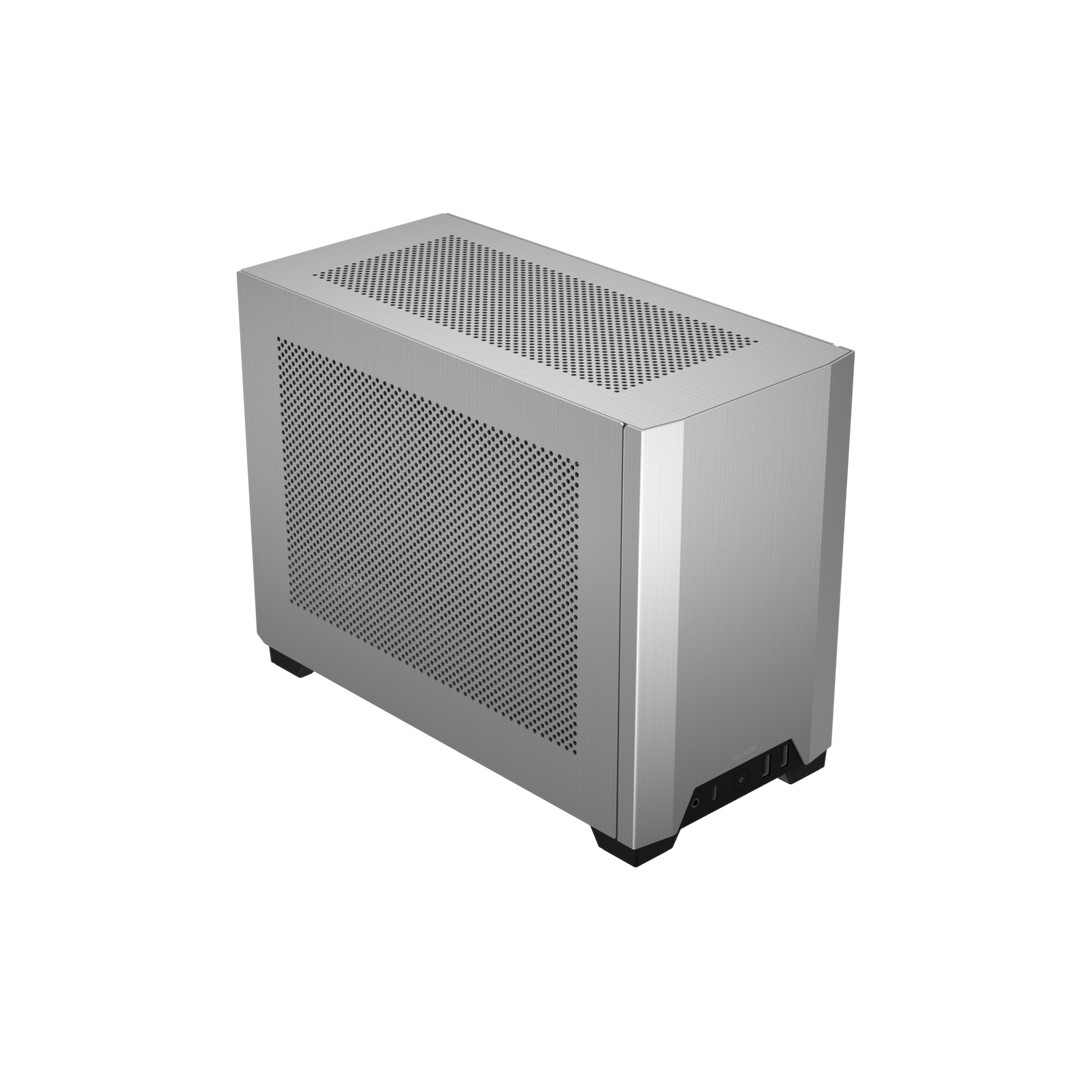

M1ENC-V61-SB-TW1: M1 Version 6.1, silver exterior
Volume
12.7L
Dimensions (L x W x H)
Excluding feet/protrusions: 328mm x 160.6mm x 241.7mm
Including protrusions: 338mm x 160.6mm x 255.5mm
Weight
2.0kg
Shipping Weight
3.4kg
Shipping Dimensions
400mm x 305mm x 220mm

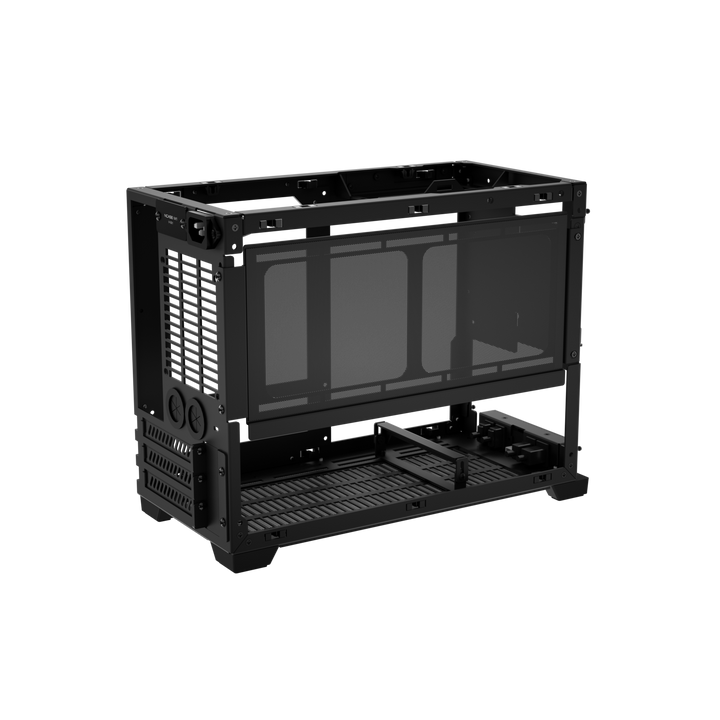

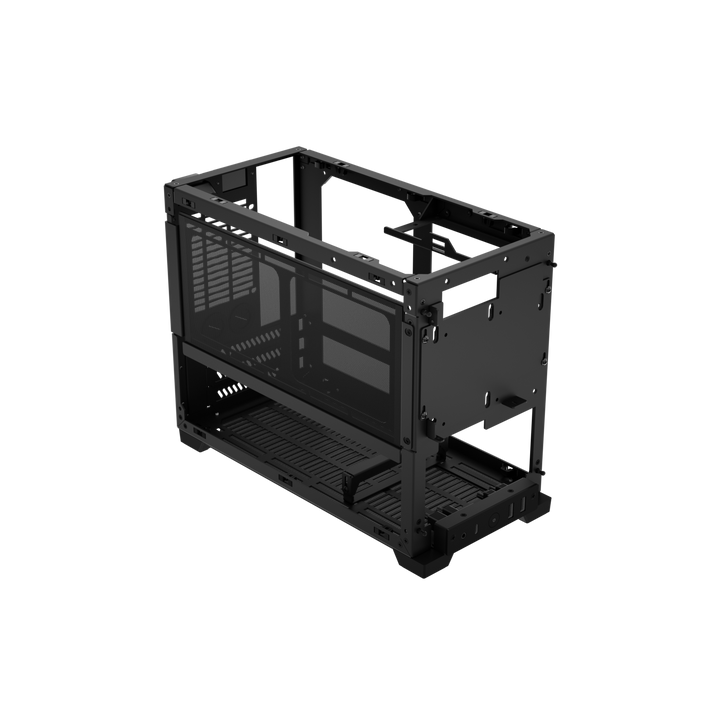

Materials
Exterior: brushed anodized aluminum, 1.5mm front and sides, 2mm top panel
Interior frame: 1.5mm matte black painted aluminum
Interior fan bracket and vented undercarriage: 1.2mm black steel
Front I/O
Power button with dual-color LED backlight (power on/HDD access)
Two USB Type A ports (to 19 pin USB header)
One USB Type C port (to 20 pin/Type E header)
One 3.5mm headphone/mic combo jack (to HD Audio header)

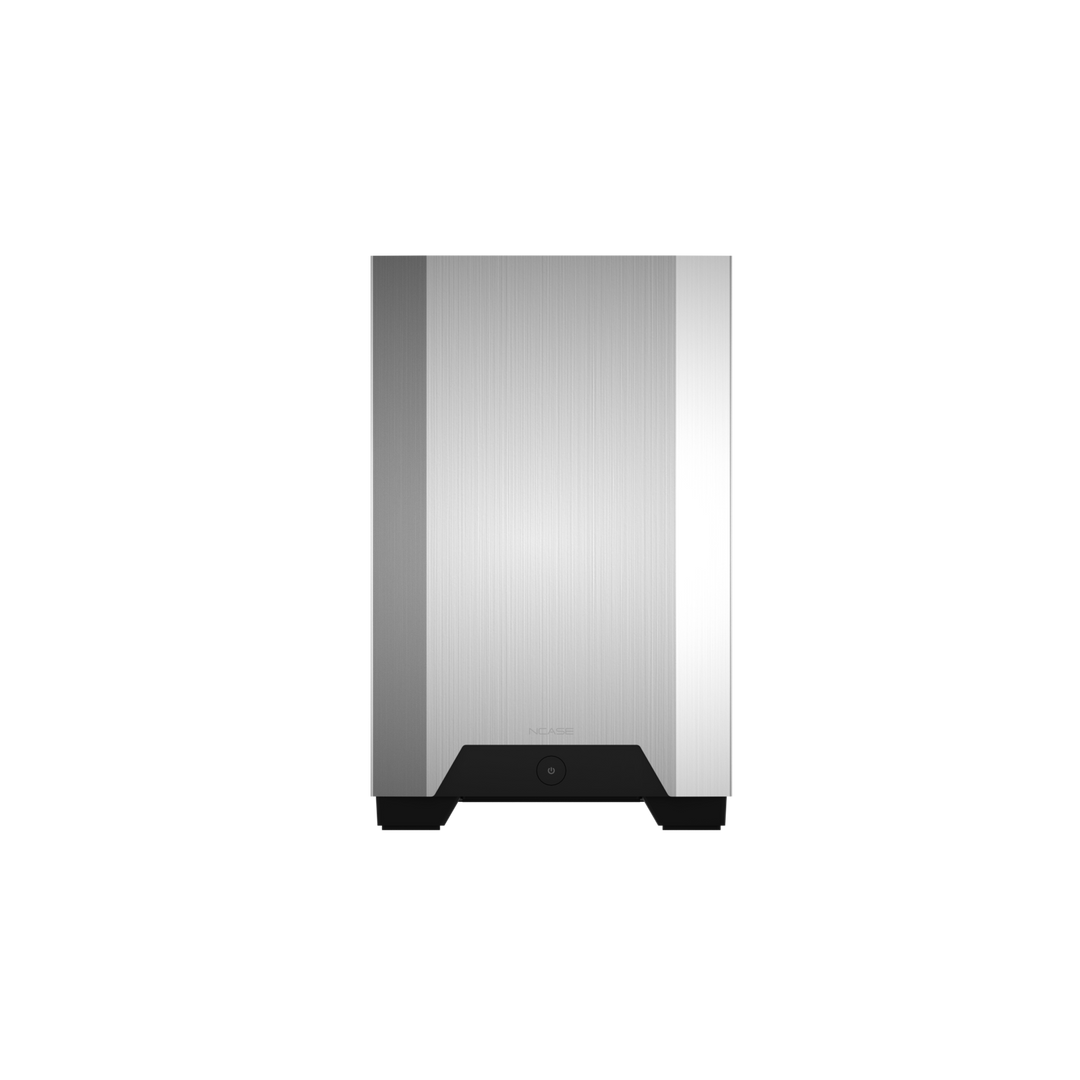

Blank no-I/O face plate included
Compatibility
Motherboards
Mini-ITX, Mini-DTX
CPU Cooler Support
- Maximum height: 130mm with side fan bracket installed, 135mm without
- CPU Heatsinks must not extend past the top edge of the motherboard by more than 10mm.
- CPU Heatsinks that extend beyond the front edge of the motherboard may interfere with the 3.5" HDD cage and/or power supply (in the default right-side mounting location).
Graphics Card Support
- Maximum length:
- 322mm (cards up to 45mm (2.2 slots) thick)
- 280mm (cards up to 60mm (3 slots) thick)
- 290mm (cards up to 60mm (3 slots) thick with front I/O ports removed)
- Maximum height (AKA width):
- 140mm at mid-card
- 130mm (first 5mm at back corner)
- 125mm (portion of card over 280mm long)
- Please allow 15-20mm for PCIe power connectors
- Bottom fan support:
- 25mm thick fans: 2 slot (42mm) cards only
- 15mm thick fans: up to 2.5 slot (50mm) cards
- GPU support bracket:
- 2 to 2.5 slot (42mm-50mm) cards only
- Also see M1 GPU Compatibility List
Drive Support
Optical Disc Drive Support(requires optional top panel with ODD slot)
- ODD bracket supports slim slot-loading optical drives in 9.5mm or 12.7mm sizes
- Alternatively, bracket may be used for a single 2.5" drive (up to 14mm thick)
2x 3.5" HDDs supported via removable brackets attached to the fan bracket (uses up one side 120mm fan location)
- Alternatively, brackets can support 3x 2.5" drives (up to 15.5mm thick)
1x 2.5" drive mount on inside-front of chassis (any thickness); also supports mounting of the HDD brackets in 3x 2.5" drive configuration in place of a single 2.5" drive
Fan Support
- Side (fan bracket): 2x 120mm
- Bottom: 2x 120mm
- Rear: 1x 92mm
Liquid Cooling Support
- 1x 240 radiator or up to 2x 120 radiators are supported on the side fan bracket
- Radiators less than 35mm thick are recommended
- 1x 240 or 2x 120 radiators precludes use of the HDD brackets attached to the fan bracket
Power Supply Support
SFX, SFX-L
What's in the box
- M1 V6.1 case (non-ODD slot version)
- Side fan bracket
- SFX PSU bracket
- ATX PSU bracket
- Optical disc drive bracket (top panel does not include slot for ODD access on non-ODD version)
- 3.5" HDD brackets (1 set)
- 2.5" HDD stacking brackets (2 sets)
- GPU support bracket
- Bottom and side magnetic dust filters
- Standard front I/O ports & faceplate
- Blank front I/O faceplate
- Internal AC power cable (right angle)
- 120mm fan grilles (2)
- Screws and rubber drive mounting grommets
Resources
Version changelog
Version
Updates
V6.1
-
Chassis
- Adjusted front SFX mount position
- Adjusted 2.5" mounting holes
- Adjusted 2.5" drive SATA connector cutouts
- Added threaded nuts to fan bracket mounting holes
-
Front I/O
- New punch tooling for smoother edges
- Audio combo jack changed to black
-
SFX bracket
- Added/modified flanges to mitigate possible PSU movement
-
ODD bracket
- Adjusted 2.5" drive mount screw holes for improved stacking bracket support
- Added chassis mounted 2.5" drive screw access holes
- Adjusted aux chassis 2.5" drive screw access holes
-
Parts box
- Removed 120mm fan filters
- Fan grille count changed to 2
- Adjusted screw counts
-
Power cable
- Changed to right angle
V6
-
Front I/O
- Added USB Type C port (requires motherboard 20 pin Type E header)
- Changed headphone and mic ports to single combo jack
- All ports use new molds
- Redesigned I/O bracket with swappable no-I/O faceplate (ports can be removed for cleaner look/slightly better 2.2+ slot GPU compatibility)
-
Chassis
- Redesigned ventilation holes on bottom and rear to improve airflow
- Added longer fan mounting slots on the bottom
- Bottom vents moved to separate steel floor plate attached to underside of chassis
- Added bottom magnetic dust filter
- Threaded inserts on PCI bracket
- Added M4 screw holes for window mounting to chassis
- Front-right chassis flange reduced, SFX PSU can now be installed from the right side
- Reduced rear-left chassis flange to facilitate GPU installation
- Enlarged chassis front GPU passthrough to facilitate GPU installation and provide more room for oversized GPUs
- Removed four panel mounting clips from side flanges to reduce incidence of oversized GPU conflicts
- Changed front 2.5" drive mounting to use screws instead of rubber grommets to save space/reduce complexity
- Integrated fan bracket mount into chassis flanges
- Added inside-front mounting for SFX PSU
-
Motherboard tray
- Changed to removable standoffs
-
ODD bracket
- Redesigned to single piece, now supports 9.5mm and 12.7mm ODD drives
-
HDD cage
- Redesigned to two pieces, now supports 2x 3.5" drives *or* 3x 2.5" drives; now allows mounting to inside front 2.5" mount (3x 2.5" configuration only)
-
Top panel
- Changed to 2mm thick
-
Side panels
- Extended ventilated area adjacent to GPU
-
Other
- New 15mm tall molded rubber feet
- New adjustable GPU support bracket (adjustable for 2-2.5 slot cards)
V5
- Front USB 3.0 ports cleaner look (removed port edges flanges)
- Motherboard tray is now fastened with screws instead of rivets to facilitate replacement or modding
- Later batches only:
- Front USB 3.0 ports color changed from blue to black
- Removed #6-32 screws for PSU mounting (some users were incorrectly using them in M3-threaded holes, stripping the threads)
- Re-added for later batches, now in a separate labeled bag
V4
- Fan bracket changed to steel and magnetic filter is now included
- Fan bracket mounts changed to allow 2mm of additional travel (allows 140mm fan w/120mm mounting holes to be used alongside a 120mm fan)
V3
- Braces added to bottom corners of chassis for increased rigidity/decreased probability of wobbling
- 0.3mm decrease in side and front panel height
- Extra QC for wobbling & panel uniformity
- SFX bracket raised 2mm and flange trimmed for better SFX-L support (CAUTION: SFX-L is still a very tight fit with long GPUs, even with the revised bracket)
- Additional motherboard standoffs added for compact mATX boards (226x173mm max w/SFX bracket; see thread and google docs spreadsheet)
- Slightly increased CPU cutout size
V2
- Enlarged CPU cutout upward on motherboard tray
- Additional cutouts at bottom of motherboard tray
- Move rear 92mm fan and tubing holes down 2mm
- Additional 3.5" HDD mounting location at forward bottom of chassis
- Cable tie holes on chassis bottom reduced from 10 to 5
- SSD stacking brackets modified to allow stacked 7mm thick SDDs closer
- ATX PSU bracket moved back to allow more clearance behind chassis front
- 3.5" HDD cage fixed to work in upper fan bracket position
- ODD bracket screw holes reduced for better M2 screw fit
- No top panel screw
- More SSD mounting screws
- Extra side panel clips
- Dome head M5 screws changed to flat head M5
- Shortened internal AC cable, changed to left angle
- Threaded inserts at side bracket mounting points
- Sub-millimeter increases to exterior panel dimensions to mitigate panel warping
- Feet color changed to black for silver cases
