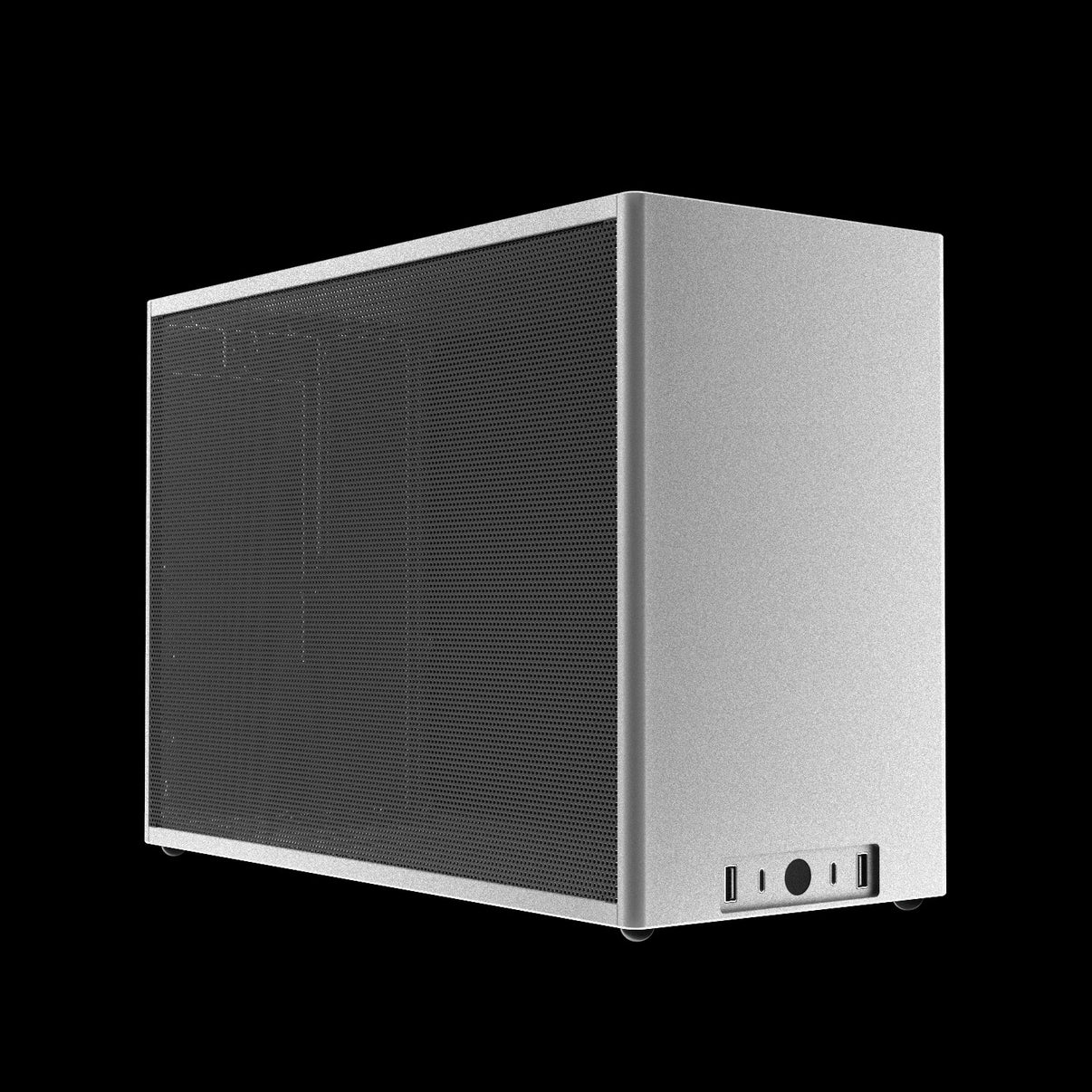

M1EVO - Round

Model Name	M1EVO-A-SDK, M1EVO-R-SDK, M1EVO-MC-SDK
Overview	M1EVO is a remaster of the Small Form Factor (SFF) icon M1 Classic. With significant improvements in compatibility, thermal ceiling, build quality, space efficiency, and value, M1EVO represents a material upgrade from the M1 Classic. Combining three popular computer layouts into a single product, M1EVO represent the intersection of space optimization, thermal optimization, and premium build quality. M1EVO V1.0 and V1.1 are made by FormD supply chain.
Materials	3-15mm Aluminum, CNC Machined and Anodized 1.0mm Steel, Powder Coated
Dimension (cm)	16 x 25.6 x 36.6
Foot Print (cm^2)	585.6 (less than A4 paper)
Volume (L)	14.99
Weight (KG)	3.5
Shipment Weight (KG)	3.5
Shipment Dimensions (cm)	8 x 30 x 40
Motherboard	Mini-ITX, Deep-ITX, Mini-DTX, Micro-ATX
CPU Cooler Support	1. M1 Config: up to 135mm max height with 4-Slot GPU 2. M1 Flipped Config: up to 135mm max height with 4-Slot GPU 3. M1 Vertical GPU Config: up to 50mm max height with 4-Slot GPU
PCIe Riser	1. M1 Config: Not Applicable 2. M1 Flipped Config: Not Applicable 3. M1 Vertical GPU Config: PCIe X16 4.0
Graphics Card Support	1. M1 Config: up to 142 x 359mm, 4-Slot thick (while Nvidia FE4090, FE4080 / FE4080 Super will fit with a 180 degree adapter, we don't recommend this combination in this Config) 2. M1 Flipped Config: up to 142 x 359mm, 4-Slot thick (while Nvidia FE4090, FE4080 / FE4080 Super will fit with a 180 degree adapter, we don't recommend this combination in this Config) 3. M1 Vertical GPU Config: up to 165 x 359mm, 4-Slot thick (requires a separate kit)
Drive Support	Up to 9 x 2.5" or 3 x 3.5" drives based on components Up to 15 x 2.5" or 5 x 3.5" drives based on components (requires a separate kit)
Fan Support	Up to 8 x 120mm + 1 x 92mm based on components Up to 6 x 140mm + 2 x 120mm + 1 x 92mm based on components
Liquid Cooling Support	1 x 120 Radiator / AIO 1 x 140 Radiator / AIO 1 x 240 Radiator / AIO 1 x 280 Radiator / AIO 2 x 240 Radiator combo (Top and Side combination will require a separate kit) 2 x 280 Radiator combo (Top and Side combination will require a separate kit) 3 x 240 Radiator combo (requires a separate kit) 2 x 280 + 1 x 240 Radiator combo (requires a separate kit)
Power Supply	SFX Power Supply SFX-L Power Supply ATX Power Supply (requires a separate kit, and limited to 140mm deep ATX PSU for GPUs longer than 270mm)
Front I/O	Power Button 2x USB-A 1x USB-C 1x USB-C passthrough adapter (supports USB 4.0)

Our team works very hard to bring our customers the best product at the best value for our customers.

After exploring various manufacturing processes, to make the pricing reasonable and cost savings most impactful, some trade-offs had to be made.

• Color - Some color variations of the parts that make up the product is normal and expected. Also, some color variation between products of the same color is normal and expected. Examples of color variation can be viewed in this album.
• Surface - Minor surface blemishes are typical and expected, as long as they do not impede the product's functions. However, there is difference between exterior and interior standard
• Exterior - scratches / dents / blemishes on exterior surfaces larger than 3x2x1cm in size are covered under the warranty.
• Interior - scratches / dents / blemishes on interior surfaces larger than 3x2x1cm in size are covered under the warranty.

Note: The interior surfaces will inevitably show wear and tear by building the product. These trade-offs on the interior surface allow for better pricing on the products.

• Each shipping date has a limited, preset number of products available.

• Only the product options shown at the time of order are available.

• Items in the cart are not reserved, so they may go out of stock while checking out.

• Please ensure your shipping address is complete and accurate. Please notify us of any corrections as soon as possible.

• You will be charged immediately upon completing the checkout process.

• A confirmation email will be sent to you after completing your order. Check your spam folder if you don't see it. Hotmail/MSN/Outlook users: please add ncases.com to your safe senders' list, or emails may not get through.

• All changes to your order, including SKU, quantities, address corrections, or cancellation requests, must be submitted 72 hours before shipping. Otherwise, we cannot make any changes once your order.

• Cancellations requested by the customer are subject to a 5% payment processing fee. Additional foreign exchange fees may apply for payments *not in US dollars.

• Refunds are made to the original payment method and usually take 5-10 business days to process.

• Refunded orders cannot be reversed, and if you cancel and change your mind later, you will need to place a new order.

• All items are prepackaged for individual shipping by default, so we cannot combine shipping for multiple items unless stated otherwise.

• The shipping times we provide are only an estimate; actual shipping times may vary and are subject to customs processing or other delays.

• A third party provides tracking numbers to us within a few days of shipping. We will update your order with the tracking number once we have it (usually by the end of your shipping week).

• Tracking may show "Origin Post is Preparing Shipment" or something similar for some time. This is normal, as some shipping methods do not update tracking to indicate the item has been shipped. Tracking should resume updating once the package has reached the destination country and been processed through customs.

• Any import fees/taxes/VAT owed is the recipient's responsibility. Typically, the courier will notify you of any fees due. US customers do not have to pay any import fees.

• A signature is required for delivery. Please be sure that someone is available to receive and sign the package. If not, please coordinate with the courier to pick it up at their office.

• Please note that we cannot change the address or redirect shipments once they have shipped.

• If delivery fails and the package is returned to Asia, we may ask you to pay all or part of the shipping cost to have it reshipped. If, instead, after the package is returned, we may elect to refund the amount less all or part of the original shipping cost plus the 4% payment processing fee.
