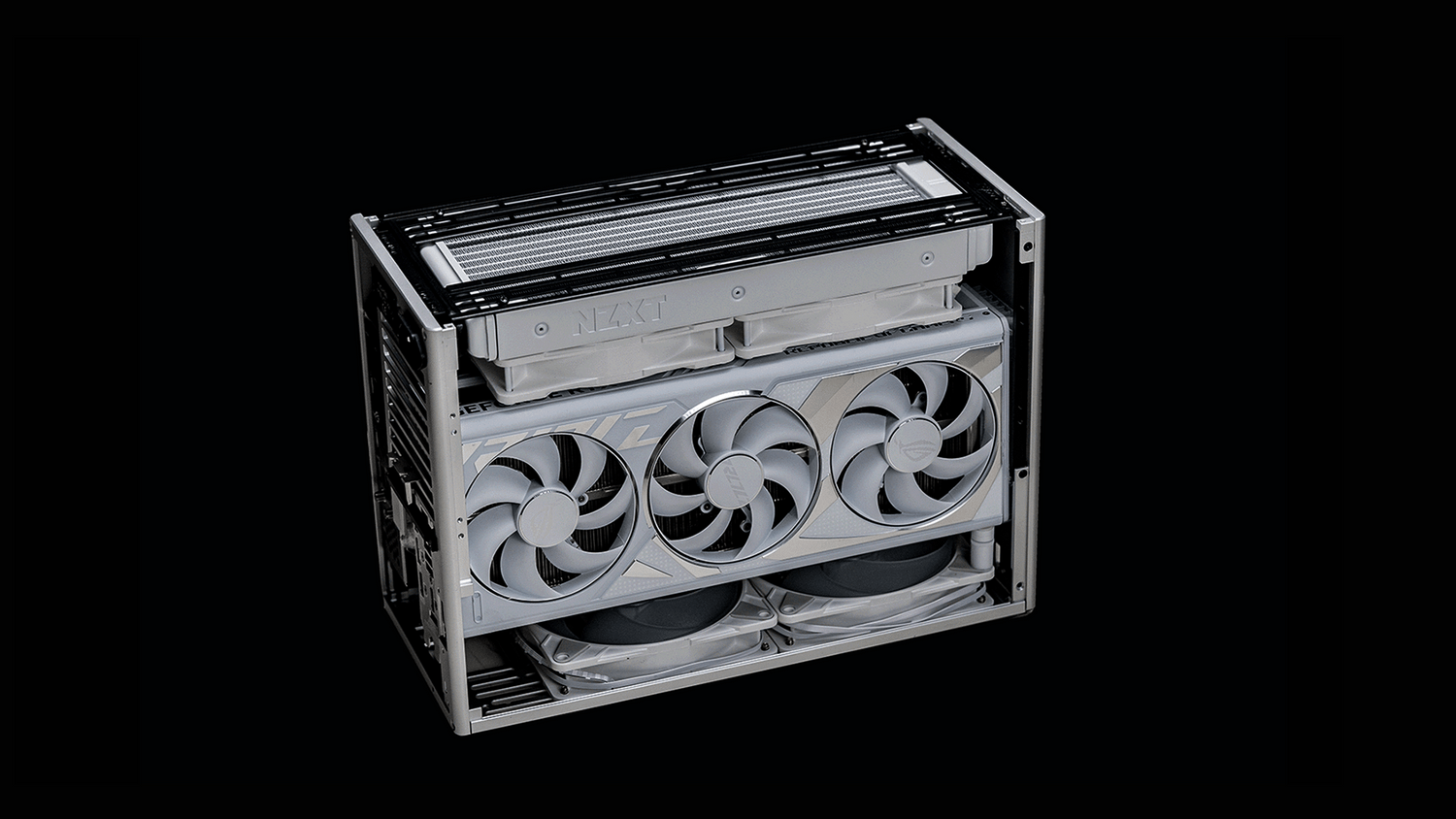

M2 Build Level 9
The goal of this build is to provide guidance on component compatibility. The component choices are not optimized for performance, thermals or budget.
Notice: small Form Factor PC builds are typically more challenging compared to standard PC builds, requiring greater attention to detail and advanced assembly skills. The success and overall experience of the build may vary depending on the user’s expertise. NCASE is not responsible for any component damage during assembly and takes no responsibility if you are unable to replicate this build.
Build Video In the Works!
Subscribe to our YouTube Channel to be notified!
| Component Type | Component Jargon | Component Name |
| Enclosure | CASE | NCASE M2 Round |
| Motherboard | MOBO | Asus ROG STRIX Z790-I |
| Memory | RAM | Corsair Dominator Titanium |
| Graphics Card | GPU | Asus ROG RTX 4080 Super / 4090 |
| Power Supply | PSU | Asus ROG Loki 850W (SFX-L) |
| Cooling | COOLER | NZXT Kraken Elite 280 RGB |
| Fans | FAN |
* Mounting one 120mm or 140mm fan under the GPU is easier. Secure the GPU via the included GPU Lock Bar and M1EVO + M2 VGPU Kit accessory. Mounting two 120mm or 140mm fans under the GPU is harder. The GPU and the VGPU Kit must be lifted to make room for the second 120mm or 140mm fan. This will require 1) installing standoffs between the GPU Bracket and the included GPU Lock Bar and 2) M2 VGPU Kit 90D accessory. While the M1EVO + M2 VGPU Kit can also work, it takes up more space than the M2 VGPU Kit 90D, making the installation harder and less compatible with bigger AIOs and GPUs. |
| M2 Accessories Used | DLC |
M1EVO + M2 VGPU Kit for one fan under the GPU M2 VGPU Kit 90D for two fans under the GPU |
| Other Accessories | Other | GPU Support Bracket/Lift (26-50mm tall) |
