FF1

NCASE X STREACOM

FF1

NCASE X STREACOM

Build Configurations

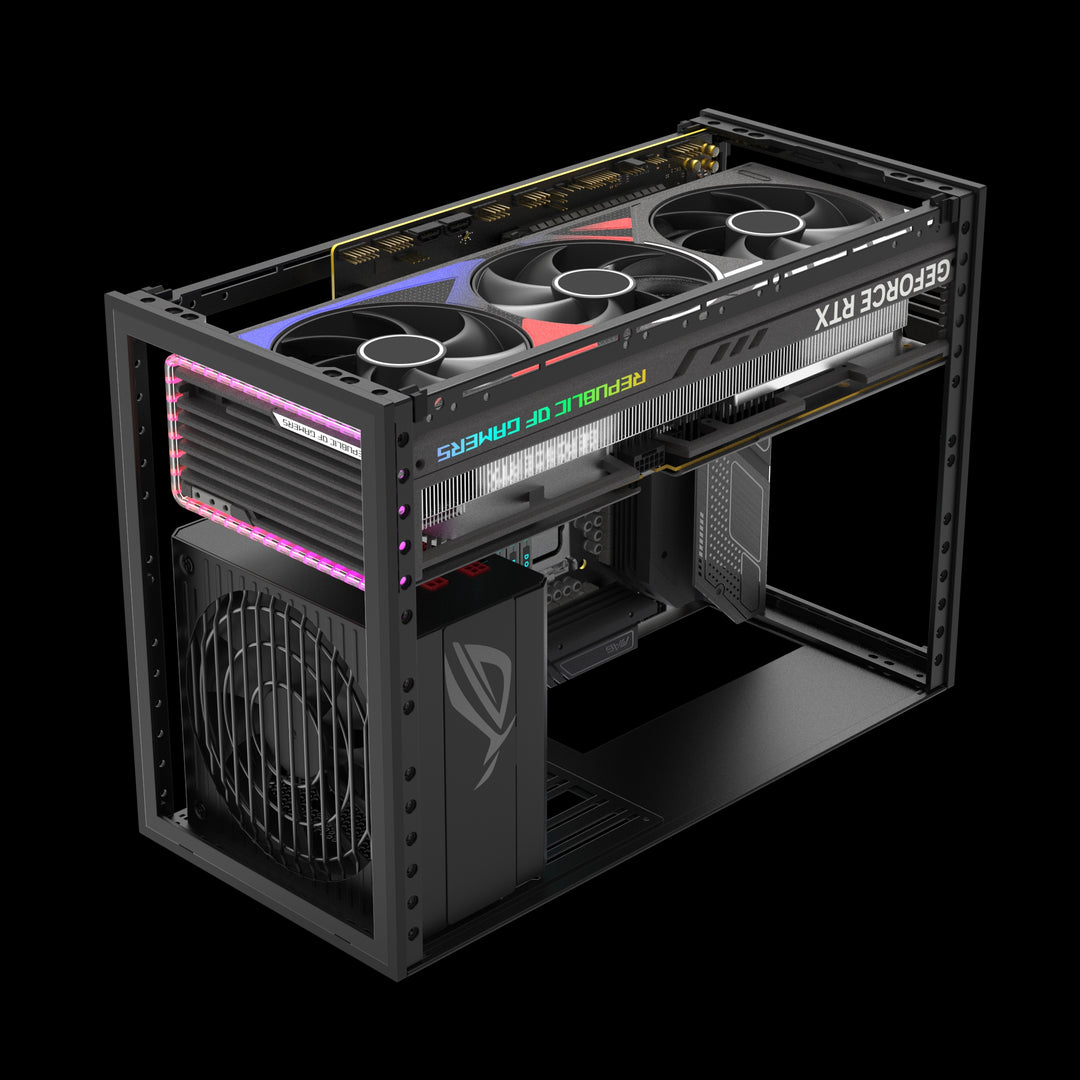

1. FF1-H-M1

2. FF1-H-A4

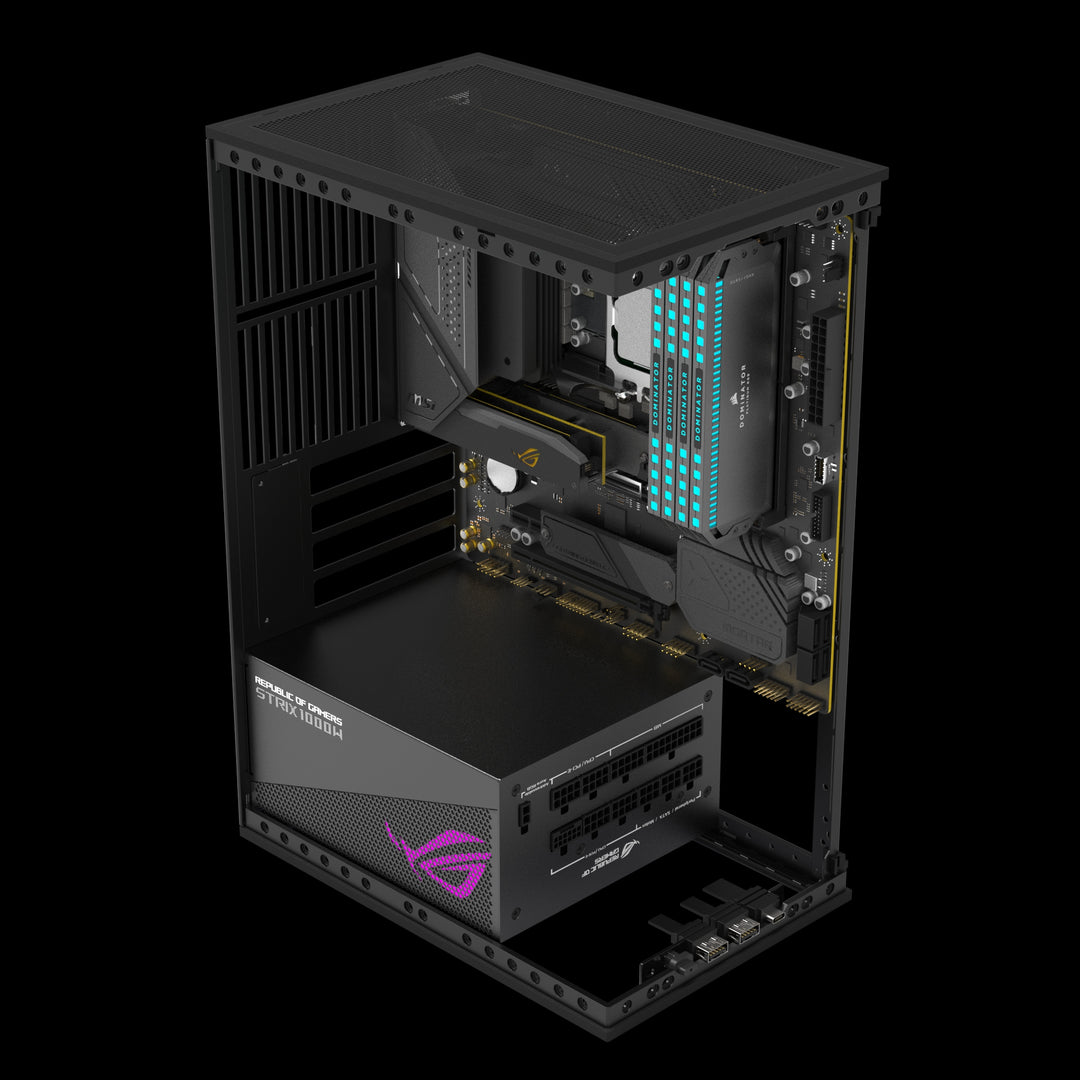

3. FF1-H-SC

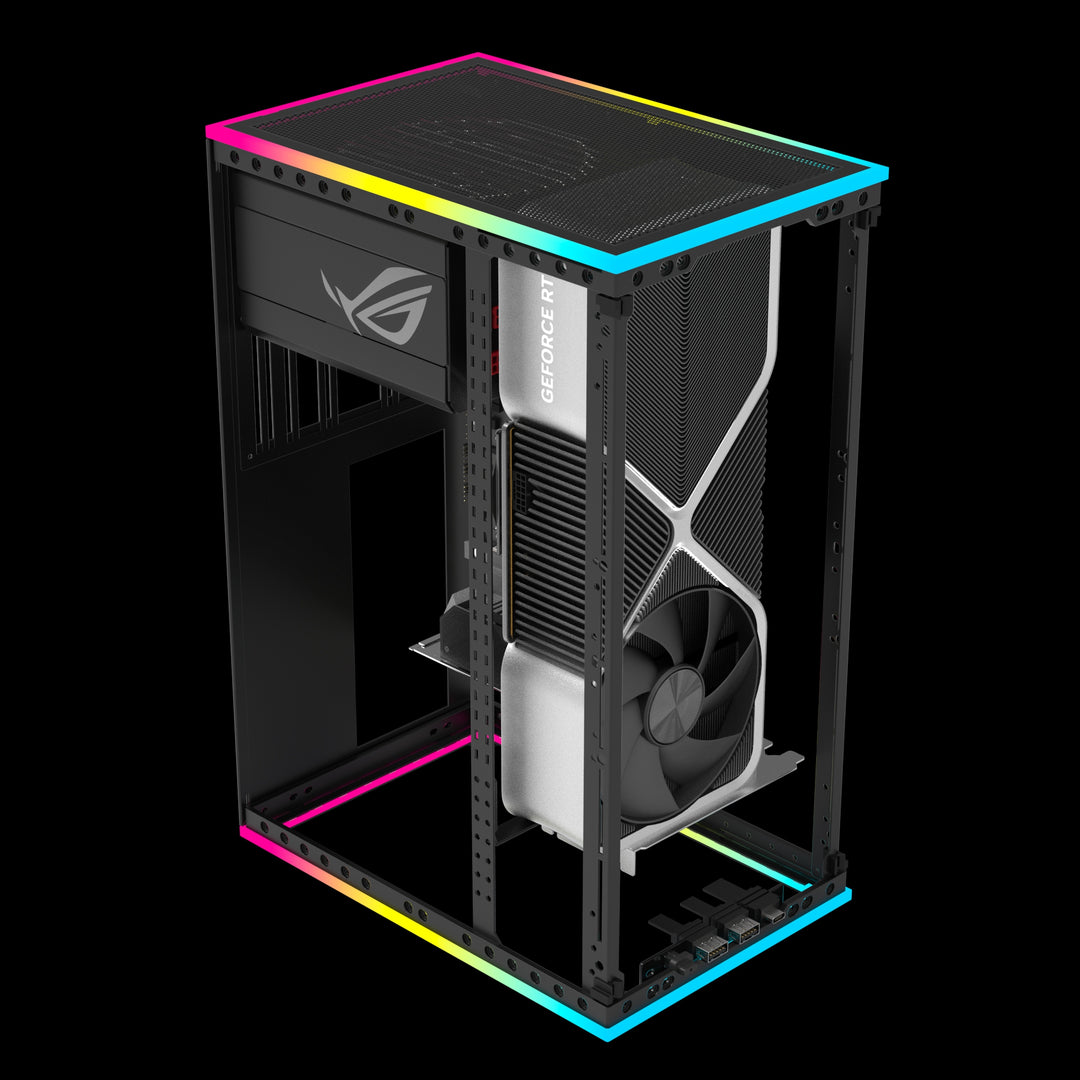

4. FF1-V-M1

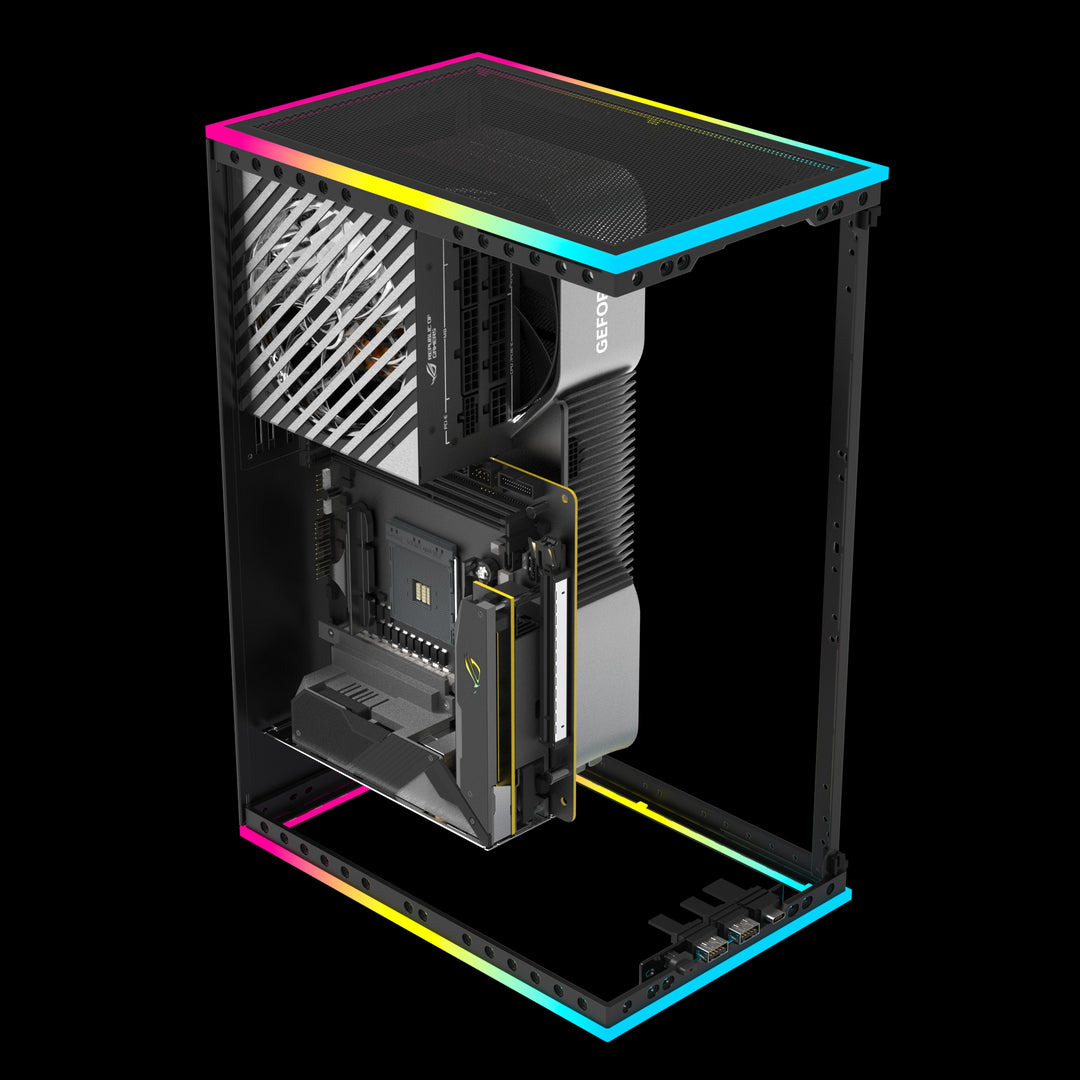

5. FF1-V-H1

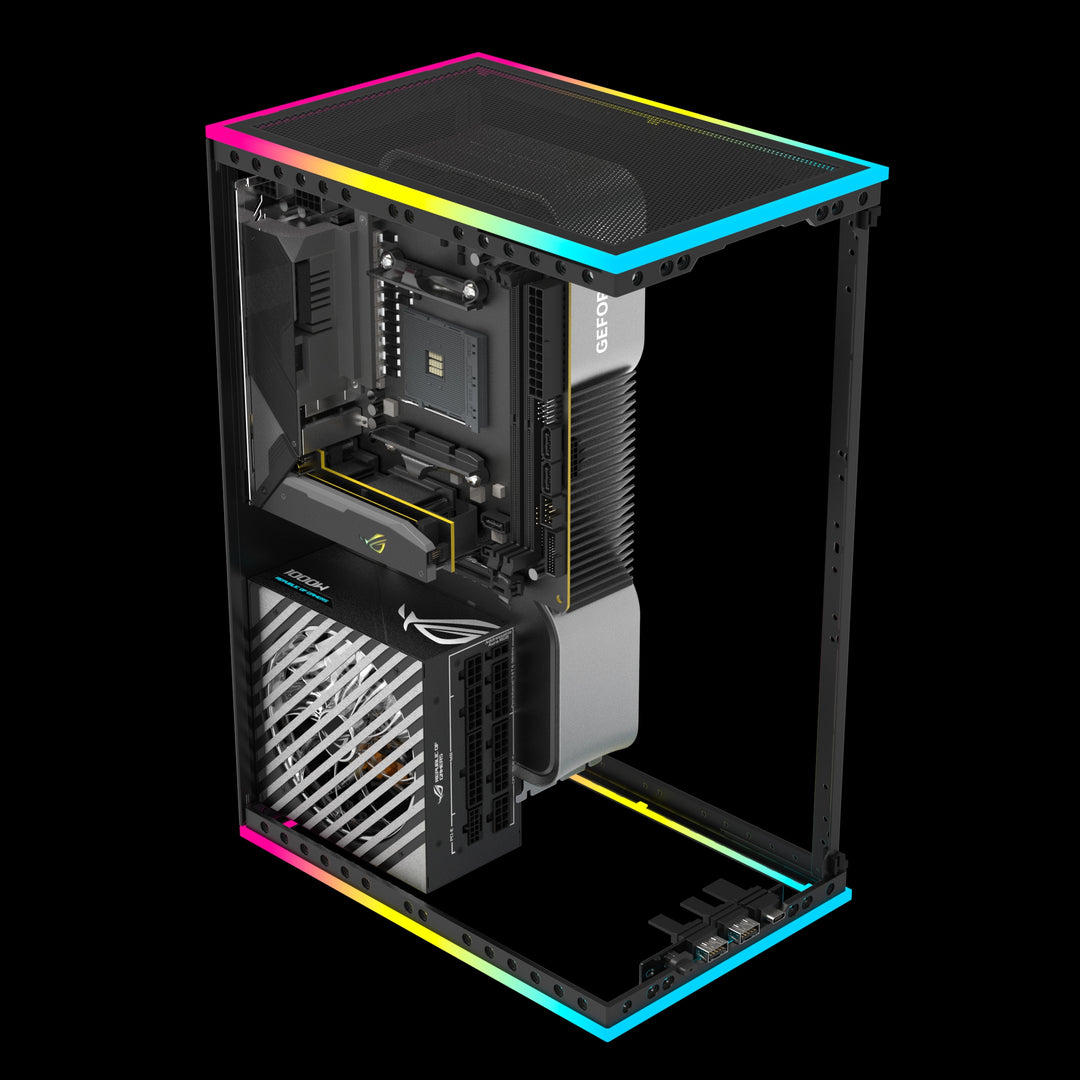

6. FF1-V-ML

Specifications - FreeFlow

Model Name FF1-BLK-S-SDK, FF1-BLK-S-SDK+PCIE4,  FF1-BLK-S-SDK+PCIE4+RGB
Overview Coming Soon.
Product Manual FreeFlow One Manual
Materials 1mm Steel, Powder Coated
Dimension (cm) 17.8 x 25.8 x 37.2
Foot Print (cm^2) 459.2 (less than A4 paper)
Volume (L) 17
Weight (KG) 3.5
Shipment Weight (KG) 3.5
Shipment Dimensions (cm) Coming Soon.
Motherboard Mini-ITX, Deep-ITX, Mini-DTX, Micro-ATX, ATX
CPU Cooler Support 1. FF1-H-M1 Config: up to 158mm max height with 4-Slot GPU
2. FF1-H-A4 Config: up to 73mm max height with 4-Slot GPU
3. FF1-H-SC Config: up to 158mm max height with 3-Slot GPU
4. FF1-V-M1 Config: up to 158mm max height with 4-Slot GPU
5. FF1-V-H1 Config: up tp 73mm max height with 4-Slot GPU
6. FF1-V-ML Config: up to 73mm max height with 4-Slot GPU
PCIe Riser 1. FF1-H-M1 Config: Not Applicable
2. FF1-H-A4; PCIe X16 4.0
3. FF1-H-SC Config: Not Applicable
4. FF1-V-M1 Config: Not Applicable
5. FF1-V-H1 Config: PCIe X16 4.0
6. FF1-V-ML Config: PCIe X16 4.0
Graphics Card Support 1. FF-H-M1 Config: up to 150 x 359mm, 4-Slot thick
2. FF-H-A4 Config: up to 165 x 359mm, 4-Slot thick
3. FF-H-SC Config: up to 150 x 250mm, 3-Slot thick
4. FF-V-M1 Config: up to 150 x 340mm, 4-Slot thick
5. FF-V-H1 Config: up to 150 x 340mm, 4-Slot thick
6. FF-V-ML Config: up to 150 x 340mm, 4-Slot thick
Drive Support Up to 3 x 3.5" or 5 x 2.5" drives based on components
Fan Support Up to 6 x 120mm
Up to 6 x 140mm
Liquid Cooling Support Single AIO / Custom Loop Radiator setups:
1 x 120 Radiator / AIO
1 x 140 Radiator / AIO
1 x 240 Radiator / AIO
1 x 280 Radiator / AIO
Dual AIOs / Custom Loop Radiators setups:
2 x 240 Radiator combo
2 x 280 Radiator combo
Triple AIOs / Custom Loop Radiators setups:
3 x 240 Radiator combo (requires a separate kit)
2 x 280 + 1 x 240 Radiator combo (requires a separate kit)
Power Supply SFX Power Supply
SFX-L Power Supply
ATX Power Supply (requires a separate kit, 140mm deep for GPUs longer than 270mm)
Front I/O Power Button
2x USB-A
1x USB-C
